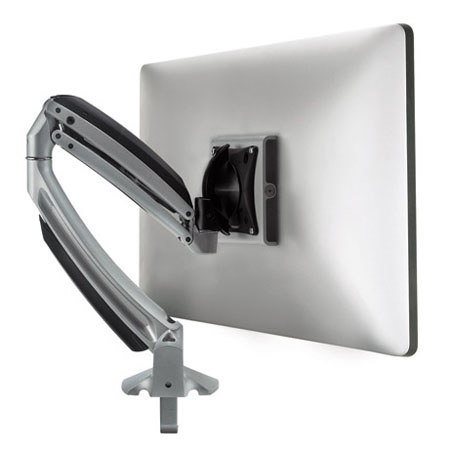

The Chief K1D100 Single Display Desk Clamp Mount (Silver) has a load capacity of 5 - 25 lbs (2.3 - 11.3 kg) and can be extendable to a maximum length of 19.9" (505.5 mm). With sleek and firm constructed forged aluminum arms, it uses a gas-spring technology that enables you to adjust the height of the mount dynamically for ideal positioning.
Integration of the 3-step installation process and the quick release interface makes this mount ideal for easy mounting and maintenance. It has a patented Centris turn-tite tilt of -75deg. / +10deg., which is suitable for ergonomic applications. The tool-free cable-management loops give the mount a neat and professional appearance.
|Desktop Thickness Range||0.75 - 2.5" (19 - 63.5 mm)|
|Dynamic Height Adjustment||13" (330.2 mm)|
|Maximum Extension||19.9" (505.5 mm)|
|Minimum Depth||2.09" (53.1mm)|
|Mounting Pattern Compatibility||75 x 75mm, 100 x 100mm (Universal Versions)|
|Number of Monitors||1|
|Post-Installation Leveling (Roll)||Yes|
|Tilt||+ 75deg., - 10deg.|
|Typical Screen Sizes||10 - 30" (254 - 762 mm)|
|Load Capacity||5 - 25 lbs (2.3 - 11.3 kg)|
|Dimensions (H x W x D)||15 x 13 x 2.1" (381 x 330 x 53.34 mm)|
