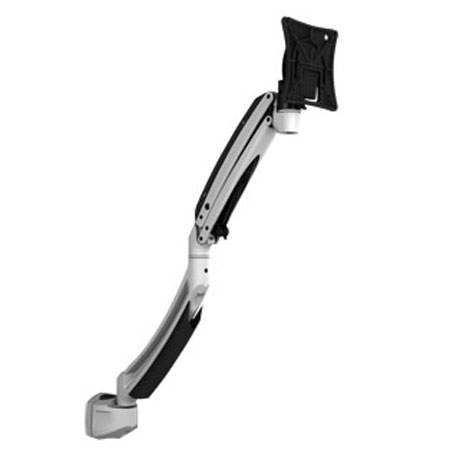

The Chief K1P100 KONTOUR Dynamic Pole Mount (Single Monitor, Black) is a forged aluminum arm for mounting a 10 to 30" monitor weighing up to 25 lb (11.3 kg) on a pole. This sleek and sturdy arm can be attached to poles with an outer diameter of 1.5 to 1.9" (38 to 48mm).
This space-saving and ergonomically designed pole mount features a gas-spring technology that allows you to dynamically adjust how high the display is positioned. You can also adjust the display's tilt from -75 to +10deg. for the optimum viewing position. Making precise adjustments is quick and easy thanks to the patented Centris Extreme Tilt feature. Complementing its ergonomic design are the cable covers that neatly conceal all the wiring to give your workspace a clutter-free look.
|Dynamic Height Adjustment||13" (330.2 mm)|
|Maximum Extension||19.12" (485.6mm)|
|Minimum Depth||2.3" (58.4mm)|
|Mounting Pattern Compatibility||75 x 75mm, 100 x 100mm (Universal Versions)|
|Pole Diameter Range||1.5 - 1.9" (38.1 - 48.26 mm)|
|Post-Installation Leveling (Roll)||Yes|
|Tilt||+ 75deg., - 10deg.|
|Typical Screen Sizes||10 - 30" (254 - 762 mm)|
|Load Capacity||5 - 25 lbs (2.3 - 11.3kg)|
