Chief KITAF009012 Projector Ceiling Mount Kit, Includes RSAUS Universal RPA Projector Mount, CMA101S Ceiling Plate and CMS009012S Extension Column

Chief
SKU: CHKAF009012S MFR: KITAF009012S

List Price: $352.00

Free Shipping

See all shipping options

In Stock Online - Usually ships within 2-4 Days learn more

30% Off

Our Price

$246.40
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About Chief KITAF009012

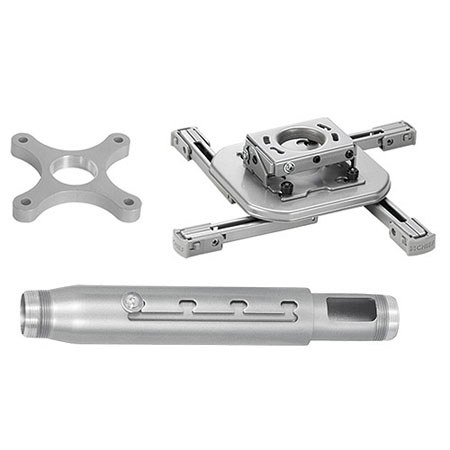

The Chief KITAF009012 Projector Ceiling Mount Kit includes RSAUS Mini Universal RPA Projector Mount, CMA101S Designer Ceiling Plate and CMS009012S 9-12" Adjustable Extension Column. The RSAUS features a universal interface that offers a compact design for smaller projectors with all the same great features as the standard RPA Series.

The CMS009012S 9-12" Adjustable Extension Column saves installation time and maximizes security with these adjustable columns. A 5" (127 mm) ceiling plate is a cost effective solution for simple installations.

Chief KITAF009012 Features

  • RSAUS: Compact design is smaller than the RPA by 1/3 and includes the same great features
  • RSAUS: Independent roll, pitch and yaw for quick and precise projector registration
  • RSAUS: Quick connect/disconnect with convenient lamp and filter access on most projectors
  • RSAUS: Disconnecting maintains registration and doesn't affect preset adjustments
  • RSAUS: All-Points Security steel-into-steel locking hardware at all connection points protects against theft
  • RSAUS: Multiple installation options including: flush mount to ceiling, use 0.25" threaded rods, or use a 1.5" NPT column
  • CMS009012S: Provides height adjustment in 1" increments
  • CMS009012S: Notched design for adjustment without disassembly
  • CMS009012S: Consists of 1.5" NPT column, threaded on both ends
  • CMS009012S: Use in combination with any Chief 1.5" NPT ceiling plate or other accessory
  • CMA101S: Attractive solution for basic installations
  • CMA101S: Easy and versatile installation using all 4 holes or 2 opposing holes
  • CMA101S: The 4" x 4" mounting pattern allows use of 0.38" mounting bolts

Chief KITAF009012 Specifications

RSAUS: Adjustments
Roll: 3deg.
Pitch: 20deg.
Yaw: 360deg.
RSAUS: Solution Type
Universal
Certifications
CMS009012S: TUV Approved, UL Listed
CMA101S: TUV Approved, UL Listed
Load Capacity
CMA101S: 500 lbs / 226.80 kg
CMS009012S: 500 lbs / 226.80 kg
RSAUS: 25 lbs / 11.34 kg
Dimensions (H x W x D)
CMA101S: 0.7" x 5" x 5" / 17.78 x 127 x 127 mm
CMS009012S: 12" x 2.3" x 2.3" / 304.8 x 58.42 x 58.42 mm
RSAUS: 1.4" x 4.4" x 4.4" / 35.56 x 111.76 x 111.76 mm
