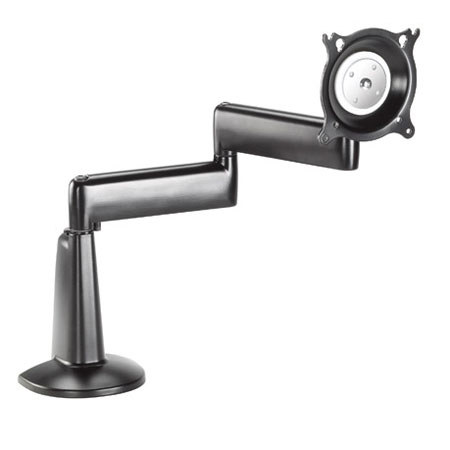

Chief KCD110 Dual Arm Desk Mount, Black
See all Chief items

Chief KCD110 Dual Arm Desk Mount, Single Monitor, Black

SKU: CHKCD110B
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Chief KCD110 Specifications

  • Desktop Thickness Range

    0.5 - 3.5" (12.7 - 88.9 mm)

  • Mounting Pattern Compatibility

    75 x 75mm, 100 x 100mm (Universal Versions)

  • Grommet Hole Size Range

    0.38 - 3" (9.65 - 76.2 mm)

  • Number of Monitors

    1

  • Maximum Extension

    16.38" (416.1mm)

  • Orientation

    Landscape, Portrait

  • Minimum Depth

    2.19" (55.6mm)

  • Post-Installation Leveling (Roll)

    Yes

  • Solution Type

    Universal

  • Tilt

    + 15deg., - 15deg.

  • Typical Screen Sizes

    10 - 30" (254 - 762 mm)

  • Load Capacity

    40 lbs (18.1kg)

  • Dimensions (H x W x D)

    6.9" x 5.6" x 4.2" (175.26 x 142.24 x 106.68 mm)

About Chief KCD110

The surface mount of the VESA-compliant Chief KCD110 Dual Swing Arm Desk Mount (Black) has multiple installation capabilities that make it easy to use. A low-profile desk mount with swing arm for pivot and tilt adjustment, it is ideal for home and office installations. Extends over 16".

Chief KCD110 Features

  • Centris Fingertip Tilt provides smooth tilt adjustment in all directions
  • Clean look with minimal hardware visible from underside of work surface
  • Clamp option allows mount to be installed from the top of the mounting surface
  • Easy installation with teardrop hole pattern, ships fully assembled
  • Multiple mounting options: Edge clamp, grommet clamp, grommet thru-bolt
  • Portrait and landscape rotation and side-to-side pivot
  • Smooth extension to achieve ideal viewing angle
  • VESA 75 x 75 mm and 100 x 100 mm compatible
  • Independently adjustable tension at pivot points provides customized control and can be optimized for touchscreens
  • Built-in cable management for a clean installation

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Chief KCD110 Dual Arm Desk Mount
  • Wall Bracket
  • 2 x Phillips 10 x 2-1/2" Screw
  • 2 x 10 Flat Machine Screw Washer
  • Chief Warranty
