Chief KITAB003 Projector Ceiling Mount Kit, Includes RSAU RPA Projector Mount, CMA455 Ceiling Tile Replacement Kit, CMS003 3" Fixed Extension Column

Chief
SKU: CHKITAB003 MFR: KITAB003

Original Price: $304.00 Special Price Available

Free Shipping

See all shipping options

In Stock Online - Usually ships within 2-4 Days learn more

Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About Chief KITAB003

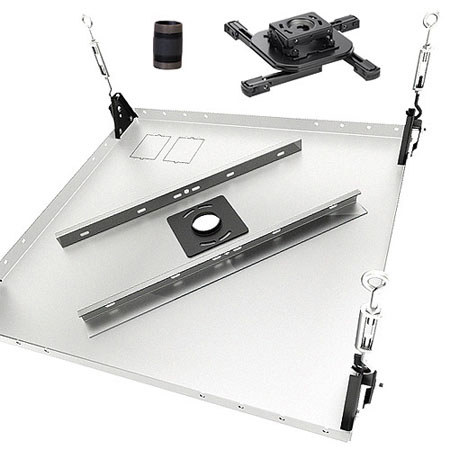

The Chief KITAB003 is a kit which includes RSAU Mini Universal RPA Projector Mount, CMA455 Suspended Ceiling Tile Replacement Kit and CMS003 3" Fixed Extension Column. The CMA455 suspended ceiling tile replacement kit is designed to replace one 2' x 2' ceiling tile or to sit above the suspended ceiling.

The RSAU mini universal RPA projector mount features a universal interface that offers a compact design for smaller projectors with all the same great features as the standard RPA Series.

The CMS003 3" Fixed Extension Column lowers projectors to the desired height.

Chief KITAB003 Features

  • RSAU: Compact design is smaller than the RPA by 1/3 and includes the same great features
  • RSAU: Independent roll, pitch and yaw for quick and precise projector registration
  • RSAU: Quick connect/disconnect with convenient lamp and filter access on most projectors
  • RSAU: Disconnecting maintains registration and doesn't affect preset adjustments
  • RSAU: All-Points Security steel-into-steel locking hardware at all connection points protects against theft
  • RSAU: Multiple installation options including: flush mount to ceiling, use 0.25" threaded rods, or use a 1.5" NPT column
  • CMA455: Quick installation without cutting any ceiling tiles
  • CMA455: Comes with 10 ft (304.8 cm) safety cable, 20 ft (609.6 cm) strand wire, two outlet knockouts, four turnbuckles, wood eye bolts and concrete anchors
  • CMA455: 2' x 2' plate is suspended and secured to the structure above with four tie wires
  • CMS003: Aluminum extension column features easy installation and maximum strength
  • CMS003: Consists of 1.5" NPT column, threaded on both ends
  • CMS003: Use in combination with any Chief 1.5" NPT ceiling plate or other accessory

Chief KITAB003 Specifications

RSAU: Adjustments
Roll: 3deg.
Pitch: 20deg.
Yaw: 360deg.
Certifications
CMA455: UL Listed
CMS003: TUV Approved, UL Listed
RSAU: Solution Type
Universal
Load Capacity
RSAU: 25 lbs (11.3 kg)
CMA455: 250 lbs / 113.40 kg
CMS003: 500 lbs / 226.80 kg
Dimensions (H x W x D)
RSAU: 1.4" x 4.4" x 4.4" / 35.56 x 111.76 x 111.76 mm
CMA455: 1.1" x 23.8" x 23.8" / 27.94 x 604.52 x 604.52 mm
CMS003: 3" x 1.9" x 1.9" / 76.2 x 48.26 x 48.26 mm
