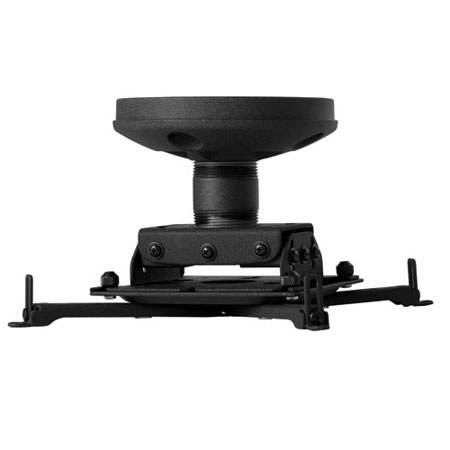

Chief KITAF003 Kit, RSAU Mini Universal RPA Projector Mount, CMS003 3" Fixed Extension Column, CMA101 Designer Ceiling Plate, Silver

Chief
SKU: CHKITAF003S MFR: KITAF003S

List Price: $259.00

Free Shipping

See all shipping options

In Stock Online - Usually ships within 2-4 Days learn more

31% Off

Our Price

$180.00
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About Chief KITAF003

The Chief KITAF003 Kit (Silver) includes RSAU Mini Universal RPA Projector Mount, CMS003 3" Fixed Extension Column and CMA101 Designer Ceiling Plate.

The Chief RSAU Mini RPA Projector Mount builds on the foundation of the highly successful RPA mount, offering a compact design and smaller form factor, which supports the trend towards sophisticated technology in a small package. It offers flexible installation options including ceiling flush mounting, 6.35 mm threaded rods or 1.5" NPT threaded extension columns.

Save installation time and maximize security with this CMS003 3" Fixed Columns. Cost effective, attractive solution for simple installs, the Chief CMA101 Ceiling Plate is designed for ease of installation with any height of drop ceiling. By using any length of standard NPT 1-1/2" pipe, threaded on both ends, you can extend the height capabilities to meet your needs.

Chief KITAF003 Features

  • RSAU: Compact design is smaller than the RPA by 1/3 and includes the same great features
  • RSAU: Independent roll, pitch and yaw for quick and precise projector registration
  • RSAU: Quick connect/disconnect with convenient lamp and filter access on most projectors
  • RSAU: Disconnecting maintains registration and doesn't affect preset adjustments
  • RSAU: All-Points Security steel-into-steel locking hardware at all connection points protects against theft
  • RSAU: Multiple installation options including: flush mount to ceiling, use 0.25" threaded rods, or use a 1.5" NPT column
  • CMS003: Aluminum extension column features easy installation and maximum strength
  • CMS003: Consists of 1.5" NPT column, threaded on both ends
  • CMS003: Use in combination with any Chief 1.5" NPT ceiling plate or other accessory
  • CMA101: Attractive solution for basic installations
  • CMA101: Easy and versatile installation using all 4 holes or 2 opposing holes
  • CMA101: The 4" x 4" mounting pattern allows use of 0.38" mounting bolts

Chief KITAF003 Specifications

Construction
RSAU: Steel
CMS003: Aluminum
RSAU: Roll
3deg.
RSAU: Pitch
20deg.
RSAU: Yaw
360deg.
CMS003: Length
3" (7.6cm)
Load Capacity
RSAU: 25 lbs (11.3 kg)
CMS003: 500 lbs (226.8 kg)
CMA101:: 500 lbs (226.8 kg)
Certifications
TUV Approved, UL Listed
Dimensions (H x W x D)
RSAU: 1.4" x 4.4" x 4.4" (36 x 112 x 112 mm)
CMS003: 3.0" x 1.9" x 1.9" (76 x 48 x 48 mm)
CMA101: 0.7" x 5.0" x 5.0" (18 x 127 x 127 mm)
