Chief

Chief KITMD003 Projector Mount Kit, Includes RSMAUW Universal Mini Elite Projector Mount, CMS003W 3" Fixed Extension Column & CMS115W 6" Ceiling Plate

SKU: CHKITMD003W MFR: KITMD003W
Usually ships in 3-5 days
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

182.85
Free Shipping
Qty:

Add to Wishlist

About the Chief KITMD003

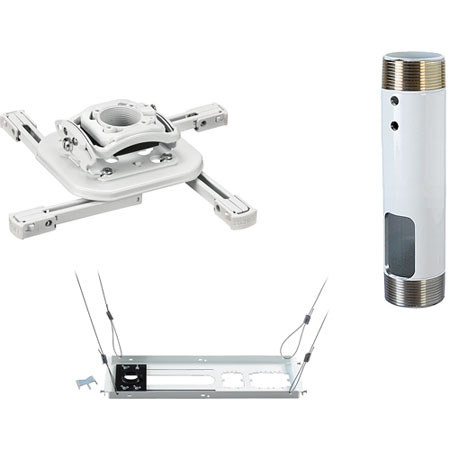

The Chief KITMD003 Projector Mount Kit includes the Chief RSMAUW Universal Mini Elite Projector Mount, CMS003W 3" Speed-Connect Fixed Extension Column and CMS115W 6" Speed-Connect Ceiling Plate. The Chief RSMAUW Mini RPA Elite Projector Mount builds upon the RPA Elite mount and offers a compact design.

Although 1/3 smaller than the RPA, this mini mount maintains 100% of the functionality of the larger mount, with independent MicroZone adjustments and supports projectors up to 25 pounds. Centris Technology allows for fingertip positioning, which automatically adjusts to accommodate specific projector weights. The RSMAUW is also quick to connect or disconnect for lamp or filter changes thanks to the Q-Lock release lever. Besides maintaining precise enough remounting to ensure that registration and preset adjustments remain unaffected, the lever integrates a key and lock for enhanced security.

The RSMAUW offers flexible installation options including ceiling flush mounting, 6.35 mm threaded rods or 1.5" NPT threaded extension columns.

Chief KITMD003 Includes

  • Chief RSMAUW Universal Mini Elite Projector Mount
  • CMS003W 3" Speed-Connect Fixed Extension Column
  • CMS115W 6" Speed-Connect Ceiling Plate
  • Chief Warranty

Summary of Customer Reviews

(1)

Chief KITMD003 Features

  • Smaller Design: Compact design is smaller than the RPA Elite by 33% but still includes all of its features
  • Adjustment Options: MicroZone Adjustments make projector registration fast and precise (including flush mount installations)
  • Fingertip Positioning: Centris Technology enables effortless fingertip positioning and self-adjusts to support different projector weights
  • Cable Management: Integrated cable management allows you to route cables through the top of the mount without using any additional accessories
  • Quick Connect and Disconnect: Q-Lock Quick Release Lever provides quick connect/disconnect of the projector for service and enhanced security with an integrated key and lock system (4 key options)

Chief KITMD003 Specifications

Mount: Adjustments Roll:+/-3deg.
Pitch: +/-15deg.
Yaw: 360deg.
Mount: Load Capacity 25 lbs / 11.34
Mount: Column 1.5" NPT
Construction Steel
Dimensions 1.83" x 4.37" x 5.07" / 46.48 x 110.99 x 128.78 mm
