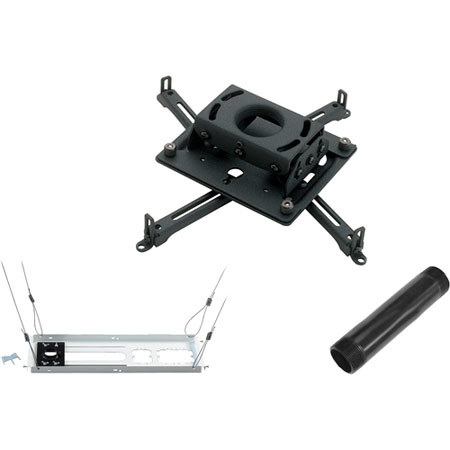

Chief KITMS006 Universal Projector Mount Kit, 50 lbs Load Capacity

Usually ships in 3-5 days
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

230.85 $9 per week
Free Expedited Shipping
Add to Wishlist

About the Chief KITMS006

The Chief KITMS006 Universal Projector Mount Kit includes the Chief RSMAU Universal Projector Mount, CMS006 6" Speed-Connect Fixed Extension Column and CMS440 Speed-Connect Above Tile Suspended Ceiling Kit. The RSMAU is ideal for the office, classroom and home and comes with everything needed for quick installation, a low-profile appearance and quick projector maintenance.

This quality mount features steel construction, integrated cable management, as well as independent roll, pitch and yaw adjustments. Enjoy easy projector maintenance, quick projector connect and disconnect and adjustable mounting legs and feet. Its integrated security system uses security hardware at all connection points for enhanced theft security. The RSMAU includes a universal interface bracket, making it compatible with 95% of inverted projectors. This means it's perfect for installers who are uncertain of a customer's projector type.

Chief KITMS006 Includes

  • Chief RSMAU Mini RPA Elite Projector Mount
  • CMS006 6" Speed-Connect Fixed Extension Column
  • CMS440 Speed-Connect Lightweight Suspended Ceiling Kit

Chief KITMS006 Features

  • Independent roll, pitch and yaw adjustments make it easy to quickly and precisely register the projector
  • Ceiling mounting options include flush mount, optional 1/4" threaded rod, or with an optional 1.5" NPT threaded extension column
  • Solid steel design for secure mounting
  • Supports projector systems weighing up to 50 pounds
  • All-Points security system features locking hardware for theft security, which optionally locks the projector and mount with security hardware at all key connection points
  • Low-profile design allows the RSMAU to be flush mounted without additional accessories
  • Custom designed brackets allow quick projector disconnect without loss of registration, doesn't affect pre-set adjustments
  • Quick projector reconnect with convenient lamp and filter access
  • Integrated cable management allows cables to be routed through the top of the mount

Chief KITMS006 Specifications

Construction Mini RPA Elite Projector Mount: Steel
Speed-Connect Fixed Extension Column: Aluminum
Speed-Connect Lightweight Suspended Ceiling Kit: Aluminum
Adjustments Roll:+/-3deg.
Pitch: +/-15deg.
Yaw: 360deg.
Speed-Connect Fixed Extension Column: Fixed column
Column 1.5" NPT
Length Speed-Connect Fixed Extension Column: 6" / 152.4 mm
Load Capacity Mini RPA Elite Projector Mount: 25 lbs / 11.34 kg
Speed-Connect Fixed Extension Column: 500 lbs / 226.80 kg
Speed-Connect Lightweight Suspended Ceiling Kit: 50 lbs / 22.68 kg
Dimensions Mini RPA Elite Projector Mount: 1.83" x 4.37" x 5.07" / 46.48 x 110.99 x 128.78 mm
Speed-Connect Lightweight Suspended Ceiling Kit: 8" x 24" x 1.25" / 203.2 x 609.6 x 31.75 mm
