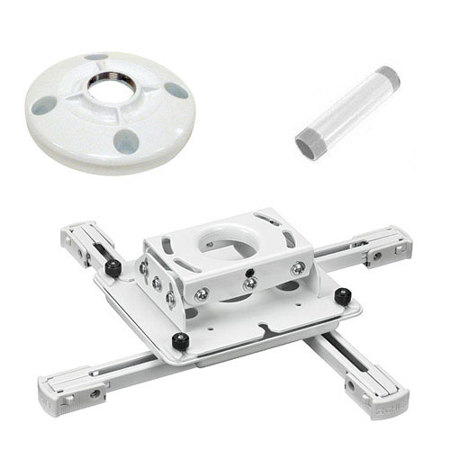

Chief KITPD003 Projector Mount Kit, Includes RPAU Universal Projector Mount, CMS003 3" Extension Column and CMS115 Ceiling Plate, White

Usually ships in 3-5 days
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

186.50 $8 per week
Free Shipping
Add to Wishlist

About the Chief KITPD003

The Chief KITPD003 Projector Mount Kit (White) takes the guesswork out of assembling everything you need to ceiling mount your video projector. The kit includes the RPAU Universal Projector Mount coupled with a 3" extension, both designed to work with a wide variety of projectors and installation scenarios. Finally, the included Speed Connect Ceiling Plate provides secure an installation in ceilings made from a solid material.

Chief KITPD003 Includes

  • Chief RPAU Inverted LCD/DLP Projector Ceiling Mount
  • CMS003 3-inch Speed-Connect Fixed Extension Column
  • CMS115 Speed-Connect Ceiling Plate
  • Chief Warranty

Chief KITPD003 Features

  • Mount: Comes with a universal bracket to fit most inverted projectors
  • Mount: Independent roll, pitch and yaw for quick and precise projector image registration
  • Mount: Quick projector connect and disconnect with convenient lamp and filter access on most projectors
  • Mount: Maintains registration when disconnected and doesn't affect preset adjustments
  • Mount: All-Points Security Systems provides exclusive steel into steel locking hardware at all connection points to protect against theft
  • Mount Multiple installation options: flush mount to ceiling, 0.25" threaded rod, or 1.5" NPT threaded extension column
  • Mount: Integrated cable management through top of mount without additional accessories
  • 3" (7.6 cm) Extension Column: Aluminum extension column features easy installation and maximum strength
  • 3" (7.6 cm) Extension Column: Consists of 1.5" NPT column, threaded on both ends
  • 3" (7.6 cm) Extension Column: Use in combination with any Chief 1.5" NPT ceiling plate or other accessory
  • Speed Connect Ceiling Plate: For mounting into solid ceiling
  • Speed Connect Ceiling Plate: Low-profile, aesthetic design
  • Speed Connect Ceiling Plate: Integrated cable management - allows cables to exit the top of the plate through the cable exit port
  • Speed Connect Ceiling Plate: All-Points Security System exclusive locking hardware at column connection point to protect against theft
  • Speed Connect Ceiling Plate: All-Points Security System provides exclusive locking hardware at column connection point to protect against theft
  • Speed Connect Ceiling Plate: Aluminum construction for optimal strength in a lightweight design
  • Speed Connect Ceiling Plate: 1.5" NPT compatible

Chief KITPD003 Specifications

Adjustments Roll: 4deg.
Pitch: 25deg.
Yaw: 360deg.
Extension 3" (7.62 cm)
Solution Type Universal
Load Capacity Mount: 50 lbs (22.7 kg)
Extension: 500 lbs (226.8 kg)
Ceiling Plate: 500 lbs (226.8 kg)
Weight Ceiling Plate: 5 lbs (2.3 kg)
