Chief Preconfigured Kit with RPAUW Projector Mount, CMS440 Ceiling Kit, CMS006W Extension Column

SKU: CHKITPS006W MFR: KITPS006W
Usually ships in 3-5 days
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$278.40 Special Price Available
Free Shipping
Qty:

Add to Wishlist

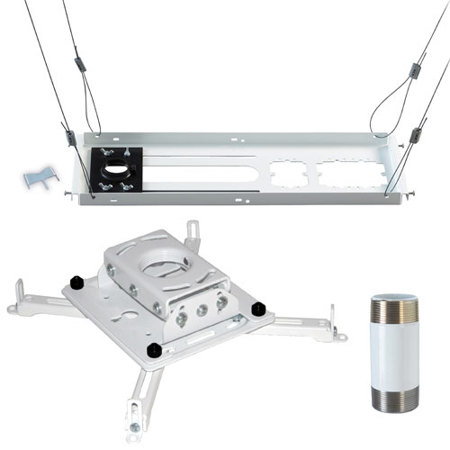

Chief Preconfigured Kit: Picture 1 regular

About the Chief Preconfigured Kit

Simplify ordering and installation with this Chief preconfigured kit of projector ceiling mounts products. Kit includes a universal projector mount RPAUW, a fixed extension column CMS006W and a suspended ceiling kit CMS440.

Chief Preconfigured Kit Includes

  • Chief RPAUW Universal Projector Mount
  • CMS440 Speed-Connect Above Tile Suspended Ceiling Kit
  • CMS006W 6" Fixed Extension Column
  • Chief Warranty

Chief Preconfigured Kit Features

  • RPAUW: Newly designed SLB universal bracket to fit most inverted projectors on the market
  • RPAUW: Independent roll, pitch and yaw for quick and precise projector image registration
  • RPAUW: Quick projector connect and disconnect with convenient lamp and filter access on most projectors
  • RPAUW: Maintains registration when disconnected and doesn't affect preset adjustments
  • RPAUW: All-Points Security Systems provides exclusive steel into steel locking hardware at all connection points to protect against theft
  • RPAUW: Multiple installation options: flush mount to ceiling, 0.25" threaded rod, or 1.5" NPT threaded extension column
  • RPAUW: Integrated cable management through top of mount without additional accessories
  • CMS440: WireVice Cable Suspension System for quick and easy tie-off
  • CMS440: TwisTile Ceiling Tile Cutter easily pierces a circular hole in the ceiling tile for extension column
  • CMS440: Flexible solution provides infinite column placement within a 2' x 2' or 2' x 4' ceiling tile
  • CMS440: Single and dual electrical outlet cutouts
  • CMS440: All-Points Security System provides exclusive locking hardware at column connection point to protect against theft
  • CMS440: Fits 24" (600 mm) wide ceiling tile grids
  • CMS440: 1.5" NPT compatible
  • CMS006W: Aluminum extension column features easy installation and maximum strength
  • CMS006W: Consists of 1.5" NPT column, threaded on both ends
  • CMS006W: Use in combination with any Chief 1.5" NPT ceiling plate or other accessory

Chief Preconfigured Kit Specifications

Solution Type Universal
RPAUW: Adjustments Roll: 4deg., Pitch: 25deg., Yaw: 360deg.
Weight Capacity RPAUW: 50 lbs (22.7 kg)
CMS440: 50 lbs (22.7 kg)
CMS006W: 500 lbs (226.8 kg)
Dimensions (H x W x D) RPAUW: 1.8" x 6.5" x 5.5" (45 x 165 x 140 mm)
CMS440: 1.3" x 8.0" x 23.4" (33 x 203 x 594 mm)
CMS006W: 6.0" x 1.9" x 1.9" (152 x 48 x 48 mm)
