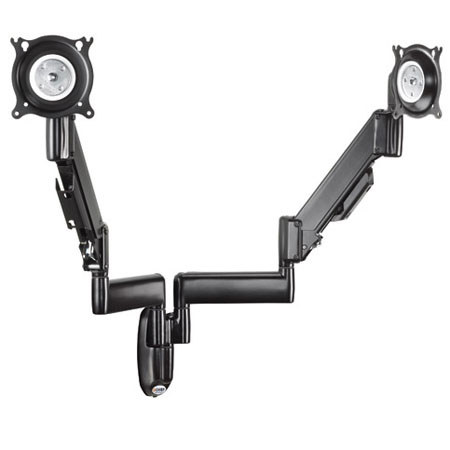

Chief KSY220 Height-Adjustable Dual Arm Slat Wall Mount, Black
See all Chief items

Chief KSY220 Height-Adjustable Dual Arm Slat Wall Mount, Dual Monitor, Black

SKU: CHKSY220B
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Chief KSY220 Specifications

  • Dynamic Height Adjustment

    13.25" (336.55 mm)

  • Maximum Extension

    21.1" (535.9mm)

  • Minimum Depth

    3.29" (83.6mm)

  • Mounting Pattern Compatibility

    75 x 75mm, 100 x 100mm (Universal Versions)

  • Number of Monitors

    2

  • Orientation

    Landscape, Portrait

  • Post-Installation Leveling (Roll)

    Yes

  • Solution Type

    Universal

  • Tilt

    + 15deg., - 15deg.

  • Typical Screen Sizes

    10 - 30" (254 - 762 mm)

  • Load Capacity

    5 - 20 lbs (2.3 - 9.1kg)

  • Dimensions (H x W x D)

    12 x 10 x 4.2" (304.8 x 254 x 106.68 mm)

About Chief KSY220

The Chief KSY220 Universal Slat Wall Height-Adjustable Dual Monitor Mount (Black) is designed for applications that need two 10-30" small flat panel displays (up to 20 lbs. per arm) to be installed on slat wall or tool tile. Position monitors independently for optimal viewing comfort (sitting and/or standing) for privacy, or for information sharing.

The KSY-220 includes a custom interface bracket making it compatible with VESA-compliant displays. However, for non-VESA compliant displays an FSB-series interface bracket might be required.

Chief KSY220 Features

  • Easy Installation: 75 x 75mm or 100 x 100mm VESA-compliant
  • Easy Installation: Teardrop hole patterns makes mounting the screen quick and easy
  • Easy Installation: Supplied OFBU Universal Slat Wall bracket attaches to over 95% of slat wall or tool tile systems
  • Easy Installation: Built-in cable management for a clean installation. Simply route cables through the predefined pathway inside the arms
  • Fingertip height adjustment up to 13.25" (337mm). Optimize viewing height adjustment for any display with customizable tension
  • Provides maximum range of motion from low profile to full extension (up to 20")
  • Patented Centris technology provides smooth, fingertip tilt (+/-15deg.) in all directions using the screen's center of gravity. Screen angle stays set until you decide to re-adjust
  • Independently adjustable tension at pivot points provides customized control. Tension can be optimized for touchscreen use
  • Sleek, attractive design hides all hardware. Folds in close (2.19") to the wall for a low-profile appearance

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Chief KSY220 Height-Adjustable Dual Arm Slat Wall Mount
  • 2 x Phillips No. 10 x 2-1/2" Pan Sheet Metal Screws
  • 2 x No. 10 Flat Machine Screw Washers
  • Chief Warranty
