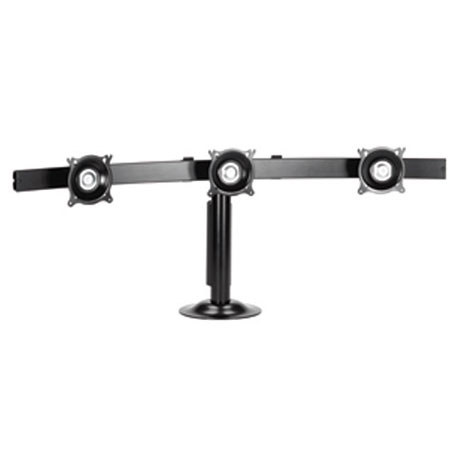

Chief KTG325B Widescreen Triple Horizontal Grommet Mount


About Chief KTG325B

The Chief KTG325B Widescreen Triple Horizontal Grommet Mount is designed to hold up to 3 monitors and with a load capacity up to 20 lb (9.1 kg) per monitor. It allows you to independently adjust each screen for proper ergonomic alignment. An integrated cable management system enables you to hide the cables and wires. Additionally, with the snap-on covers and cable slip you can conceal and protect the cables, offering a clean look. The Widescreen Triple Horizontal Grommet Mount features a teardrop hole pattern that allows you to mount the screens. It comes with heavy-duty, solid steel base that offers stability and the Centris Technology provides easy fingertip positioning.

Chief KTG325B Features

  • Centris Technology provides smooth, fingertip tilt in all directions
  • Screen angle stays set in place until you decide to re-adjust
  • Independent adjustment of each screen for proper ergonomic alignment
  • Teardrop hole pattern makes mounting the screens quick and easy
  • Heavy-duty, solid steel base and oversize pole for unmatched stability
  • Conceal and protect cables using snap-on covers and cable clip
  • Heavy-duty, solid steel bolting plates and oversized pole for unmatched stability
  • Integrated cable management
  • VESA 75 x 75 mm and 100 x 100 mm compatible

Chief KTG325B Specifications

Desktop Thickness Range
0.5" - 5" / 12.7 - 127 mm
Grommet Hole Size Range
0.38" - 3.5" / 9.65 - 88.9 mm
Mounting Pattern Compatibility
75 x 75mm, 100 x 100mm (Universal Versions)
Number of Monitors
Landscape, Portrait
Pole Length
14" / 35.5 cm
Post-Installation Leveling (Roll)
Solution Type
+ 15deg., - 15deg.
TV Height Range
10" - 26" / 254 - 660.4 mm
TV Width Range
10" - 25" / 254 - 635 mm
Typical Screen Sizes
10" - 24" / 254 - 609.6 mm
Load Capacity
20 lbs / 9.072 kg
Dimensions (H x W x D)
14.5" x 53.8" x 10.5" / 368.3 x 1366.52 x 266.7 mm
