Chief KWB110 Height-Adjustable Triple Swing Arm Wall Mount, Black
Chief

Chief KWB110 Height-Adjustable Triple Swing Arm Wall Mount, 5-25 lbs Load Capacity, Black

SKU: CHKWB110B MFR: KWB110B
Usually ships in 3-5 days
What's Included
What's Included With This Item:
  • Chief KWB110 Height-Adjustable Triple Swing Arm Wall Mount
  • 2 x Screw / Phillips Pan Sheet Metal / No. 10 x 2-1/2"
  • 2 x Washer / Flat Machine Screw / No. 10
  • Chief Warranty
Write a Review
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

172.00
Qty:

Add to Wishlist
OverviewFeaturesTech Specs
Its never too late...Click by 8! Same day shipping.

About this item

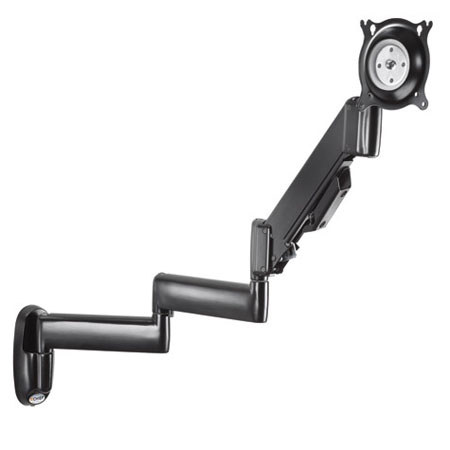

The Chief KWB110 Height-Adjustable Triple Swing Arm Wall Mount (Black) provides the maximum height adjustment and extension, making it a leader in ergonomic capabilities. It is designed for small flat panel displays from 10-30" (or up to 25 lbs.), it folds in close to the wall for a low-profile appearance.

What's Included With This Item

  • Chief KWB110 Height-Adjustable Triple Swing Arm Wall Mount
  • 2 x Screw / Phillips Pan Sheet Metal / No. 10 x 2-1/2"
  • 2 x Washer / Flat Machine Screw / No. 10
  • Chief Warranty

Key Features

  • Fingertip height adjustment to achieve ergonomic viewing height
  • Exclusive Centris Technology provides smooth, fingertip tilt in all directions
  • Independently adjustable tension at pivot points for customized control, tension can be optimized for touchscreen use
  • Folds in close to the wall for a low-profile appearance
  • Sleek, attractive design hides all hardware
  • Teardrop hole pattern makes mounting the screen quick and easy
  • Integrated cable management
  • VESA 75 x 75 mm and 100 x 100 mm compatible

Technical Specs

Number of Monitors 1
Orientation Landscape, Portrait
Compatible with OFB Furniture Brackets Yes
Dynamic Height Adjustment 13.25" (336.5mm)
Maximum Extension 25.9" (657.9mm)
Minimum Depth 2.19" (55.6mm)
Mounting Pattern Compatibility 75 x 75mm (2.95 x 2.95"), 100 x 100mm (3.93 x 3.93"), 200 x 100mm (7.87 x 3.93") Universal Versions
Post-Installation Leveling (Roll) Yes
Solution Type Universal
Tilt + 15deg., - 15deg.
Typical Screen Sizes 10 - 30" (254 - 762mm)
Load Capacity 5 - 25 lbs (2.3 - 11.3kg)
Dimensions (H x W x D) 15.3" x 4.6" x 26.0" (388.6 x 116.8 x 660.42.95mm)
