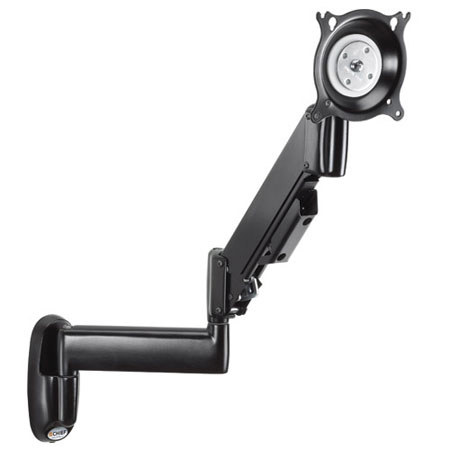

Chief KWG110 Height-Adjustable Dual Swing Arm Wall Mount, Black
See all Chief items

Chief KWG110 Height-Adjustable Dual Swing Arm Wall Mount, 5-25 lbs Load Capacity, Black

SKU: CHKWG110B
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Chief KWG110 Specifications

  • Number of Monitors

    1

  • Orientation

    Landscape, Portrait

  • Compatible with OFB Furniture Brackets:

    Yes

  • Dynamic Height Adjustment

    13.25" (336.5mm)

  • Maximum Extension

    19.4" (492.8mm)

  • Minimum Depth

    2.19" (55.6mm)

  • Mounting Pattern Compatibility

    75 x 75mm (2.95 x 2.95mm), 100 x 100mm (3.93 x 3.93") Universal Versions

  • Post-Installation Leveling (Roll)

    Yes

  • Solution Type

    Universal

  • Tilt

    + 75deg., - 10deg.

  • Typical Screen Sizes

    10 - 30" (254 - 762mm)

  • Load Capacity

    5 - 25 lbs (2.3 - 11.3kg)

  • Dimensions (H x W x D)

    12.0" x 10.0" x 2.2" (305 x 254 x 56mm)

About Chief KWG110

The Chief KWG110 Height-Adjustable Dual Swing Arm Wall Mount (Black) provides a broad range of motion for viewing small flat panel display (from 10-30" or up to 25 lbs.) from multiple angles and heights. It is ideal solution for applications that require installation at a certain height and viewing at another. For convenience, it folds in close to the wall for a low-profile appearance and provides cable management.

Chief KWG110 Features

  • Fingertip height adjustment up to 13.25" (337 mm) to achieve optimal viewing height
  • Centris Technology provides smooth, fingertip tilt in all directions
  • Easy installation - Attach wall plate to single stud. Slide mount onto plate. Attach display to mount. Secure hardware
  • Sleek, attractive design hides all hardware
  • Independently adjustable tension at pivot points for customized control
  • Tension can be optimized for touchscreen use
  • Compatible with all Chief custom OFB Office Furniture interface brackets
  • VESA 75 x 75 mm, 100 x 100 mm compatible

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Chief KWG110 Height-Adjustable Dual Swing Arm Wall Mount
  • 2 x Screw/Phillips Pan Sheet Metal/No. 10 x 2-1/2"
  • 2 x Washer/Flat Machine Screw/ No. 10
  • Chief Warranty
