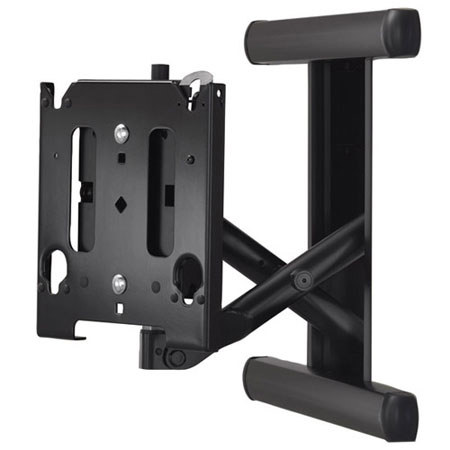

Chief MIWRF6000 Medium Low-Profile 10" In-Wall Swing Arm Mount without Interface


See all shipping options

In Stock Online - Usually ships within 2-4 Days learn more

Made in USA
Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

About Chief MIWRF6000

The Chief MIWRF6000 Medium Low-Profile 10" In-Wall Swing Arm Mount is a fully integrated, pre-assembled swing arm, fitting flush inside the wall with a low-profile finish. Designed for 30-55" flat panel displays up to 125 lbs, the MIWRF6000 allows perfect TV placement during installation without cutting studs or having to retrofit existing wall structures. Simply cut out the drywall at the desired wall location and install the in-wall box. Installation is also made easier with built-in lateral shift and height adjustment. Integrated cable management and a trim kit are provided for an aesthetic and low-profile finish of less than 2".

Users have increased positioning flexibility of their display with wide viewing angles. Optimal viewing is achieved with 37deg. of left/right swivel, up to 9.9" of extension, fingertip tilt and ultra smooth movement. The MIWRF6000 is a custom mount that requires an MSB-series interface bracket.

Chief MIWRF6000 Features

  • Provides limitless centering of the flat panel on the wall between 16" center studs without cutting studs - no header/footer necessary
  • Low-profile design hides the mount behind the display
  • Centris Technology provides smooth, fingertip tilt
  • Provides post-installation height adjustment
  • ClickConnect Technology provides an audible click to confirm that the flat panel is locked in place
  • Screen can be installed in portrait or landscape orientation ( MAC400 accessory can be used to rotate without removing the screen)
  • Integrated cable management
  • Ships as complete in-wall swing arm - zero assembly required

Chief MIWRF6000 Specifications

UL Listed
Lateral Shift
5" / 127 mm
Manual Height Adjustment
1" / 25.4 mm
Maximum Extension
9.9" / 251.46 mm
Minimum Depth
1.7" / 43.18 mm
Mounting Pattern Compatibility
100 x 100mm - 709 x 431mm (Universal Versions)
Landscape, Portrait
Pivot (numerical value)
+/- 37.5deg. (depending on screen width)
Post-Installation Leveling (Roll)
+ 2deg., - 15deg.
Typical Screen Sizes
30" - 55" / 762 - 1397 mm
Wall Stud Compatibility
16" / 406.4 mm
Load Capacity
125 lbs / 56.70 kg
Dimensions (H x W x D)
17.2" x 20.3" x 5.6" / 436.88 x 515.62 x 142.24 mm
Mfr #
