Chief

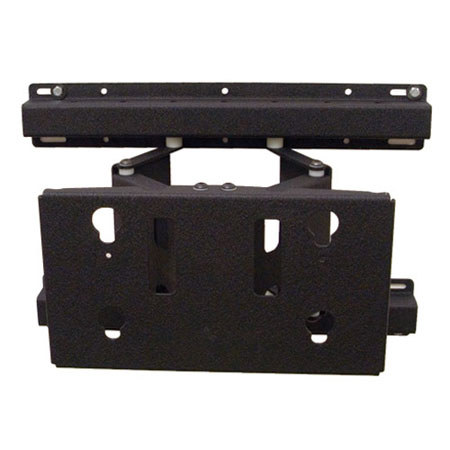

Chief MPW6000 Medium Flat Panel 8" Swing Arm Wall Mount, without Interface

SKU: CHMPW6000B MFR: MPW6000B
Usually ships in 3-5 days
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

About the Chief MPW6000

The Chief MPW6000 Medium Flat Panel 8" Swing Arm Wall Mount is a great solution for installations of medium flat panels that require short extension and swivel. The MPW6000 provides ultra smooth adjustment for flat panels 30"-55" and remains low profile in the home position.

Chief MPW6000 Includes

  • Chief MPW6000 Medium Flat Panel 8" Swing Arm Wall Mount
  • Bracket/Display Interface/VESA 200x200 with Mounting Buttons
  • 4 x (1/4 x 2")Screws/Wood/Phillips
  • 4 x (1/4") Washers, Flat
  • 4 x (.194 x .625 x .125) Spacers, Display Mounting
  • 4 x (.740 x .250 x .250) Spacers, Display Mounting
  • 4 x (M4x16mm) Screws, Phillips Flat Head Machine
  • 4 x (M4x8mm) Screws, Phillips Pan Head Machine
  • 4 x (M4x20mm) Screws, Phillips Pan Head Machine
  • Chief Warranty (See Specifications for more Item Includes)

Chief MPW6000 Features

  • Smooth extension up to 8.75" (222 mm) to achieve ideal viewing angle
  • Ultra low-profile in the home position, only 1.5" (38 mm) deep
  • Provides up to 45deg. of swivel in either direction (depending on screen size)
  • Locable in home position to prevent articulation (pin included)
  • Installs on 16" center studs
  • Integrated lateral shift allows repositioning of the mount right or left after installation for ultimate positioning flexibility
  • Screen can be installed in portrait or landscape orientation

Chief MPW6000 Specifications

Item Includes 4 x Screws, Phillips Pan Head Machine, M6x20mm - 4 x Screws, Phillips Pan Head Machine, M6x30mm - 4 x Screws, Phillips Pan Head Machine, M6x45mm - 4 x (No. 10-24)Nut, Lock, Nylon - 2 x 1" Pad, Felt - 2 x Clip, Cable Management - 3/16" Wrench, Hex - 5/32" Wrench, Hex
Lateral Shift 4.5" / 114.3 mm
Maximum Extension 8.75" / 222.25 mm
Minimum Depth 1.5" / 38.1 mm
Mounting Pattern Compatibility 100 x 100mm - 709 x 431mm (Universal Versions)
Orientation Landscape, Portrait
Typical Screen Sizes 30" - 55" / 762 mm
Wall Stud Compatibility 16" / 406.4 mm
Load Capacity 100 lbs / 45.36 kg
Dimensions (H x W x D) 18" x 23.6" x 3.4" / 457.2 x 599.44 x 86.36 mm
