Chief

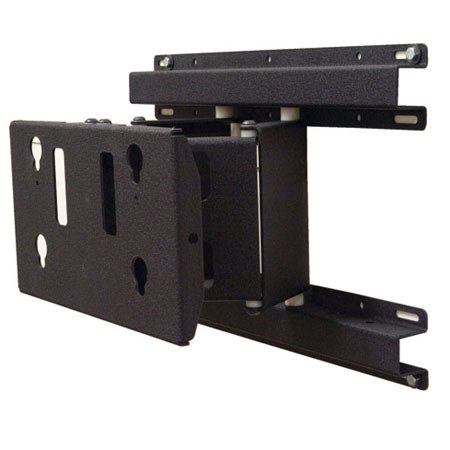

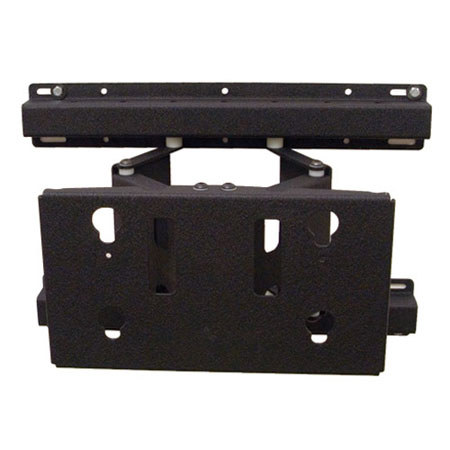

Chief MPWUB Medium Flat Panel Swing Arm Wall Mount, 8" Extension

SKU: CHMPWUB MFR: MPWUB
Usually ships in 3-5 days
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

About this item

The Chief MPWUB Medium Flat Panel Swing Arm Wall Mount is designed for 30 - 55" flat panel displays up to 100 lb. It provides ultra smooth extension to 8.75" and 45-degree swivel in either direction to achieve ideal viewing angles. For convenience, mount remains low profile in the home position. Included universal bracket fits hundreds of flat panel displays.

What's Included With This Item

  • Chief MPWUB Medium Flat Panel Swing Arm Wall Mount
  • Mount Assembly
  • 2 x Cable Management Clips
  • 2 x Felt Pads
  • 4 x End Caps
  • 2 x Hex Wrenches
  • Chief Warranty

Key Features

  • Smooth extension up to 8.75" (222.25 mm) to achieve ideal viewing angle
  • Ultra low-profile in the home position, only 1.5" (38.1 mm) deep
  • Provides up to 45deg. of swivel in either direction (depending on screen size)
  • Locable in home position to prevent articulation (pin included)
  • Installs on 16" center studs
  • Integrated lateral shift allows repositioning of the mount right or left after installation for ultimate positioning flexibility
  • Screen can be installed in portrait or landscape orientation

Technical Specs

Lateral Shift 4.5" / 114.3 mm
Maximum Extension 8.75" / 222.25 mm
Minimum Depth 1.5" / 38.1 mm
Mounting Pattern Compatibility 100 x 100mm - 709 x 431mm (Universal Versions)
Orientation Landscape, Portrait
Solution Type Universal
Typical Screen Sizes 30" - 55" / 762 - 1397 mm
Wall Stud Compatibility 16" / 406.4 mm
Load Capacity 100 lbs / 45.36 kg
Dimensions (H x W x D) 18" x 23.6" x 3.4" / 457.2 x 599.44 x 86.36 mm
