Chief

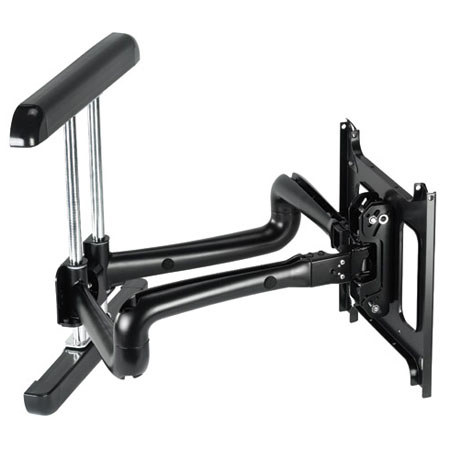

Chief PDRU Large Flat Panel Swing Arm Wall Mount, 37" Extension, Black

SKU: CHPDRUB MFR: PDRUB
Usually ships in 3-5 days
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$644.80 Special Price Available $20 per week
Qty:
Add to Wishlist

About this item

View large flat panel displays up to 71" or 200 lbs. from any angle with the Chief PDRU Universal Dual Swing-Arm Wall Mount (Black). This custom mounting solution swings out and extends up to 37" from the wall, collapsing to only 2-7/8" when in home position. The PDRUB is wall-mounted, rugged, versatile and installer-friendly. It has vertical, lateral and rotational tilt tension adjustments. Flat panel screens can be mounted in either the landscape or portrait position.

The PDRU is designed for fast installation. After drawing the plumb line and installing the two top lag bolts into the dual wall studs, the installer hangs the mount on its top bracket and installs two lag bolts in the bottom bracket. Next, the installer makes the height adjustment, installs the plasma screen and routes the power/audio/video cables down the built-in path in the swing-out arms, completing the installation process. The PDR-U includes a universal interface bracket making it compatible with hundreds of flat panel displays from 42-71" or 200 lbs.

What's Included With This Item

  • Chief PDRU Large Flat Panel Swing Arm Wall Mount
  • 2 x Cover Plates
  • 4 x End Caps
  • 12 x Tie-Wraps
  • 4 x Lag Bolts / 5/16" x 2.5"
  • 4 x Flat Washers / 5/16"
  • Wrench/Adjustment
  • Bar/Adjustment
  • Chief Warranty

Key Features

  • Centris Technology tilt mechanism adjusts to provide fingertip tilt with most flat panels
  • Post-installation height adjustment up to 1" (25 mm) for ultimate installation flexibility
  • Q-Latch Mounting System secures flat panel to mount with a latching flag
  • Extends 37" (93.98 cm) for viewing from any angle and remains low-profile in home position
  • CableTrac System provides built-in cable management channels inside the arms for a clean installation
  • Screen can be installed in portrait or landscape orientation (PAC400 accessory can be used to rotate without removing the screen)

Technical Specs

Certifications UL Listed
Lateral Shift 9" (228.6mm)
Manual Height Adjustment 1" (25.4 mm)
Maximum Extension 37" (939.8mm)
Minimum Depth 3.4" (86.4mm)
Mounting Pattern Compatibility 200 x 200mm - 862 x 517mm (Universal Versions)
Orientation Landscape, Portrait
Post-Installation Leveling (Roll) Yes
Solution Type Universal
Tilt + 5deg., - 15deg.
Typical Screen Sizes 42 - 71" (1066.8 - 1803.4 mm)
Wall Stud Compatibility 16" (406.4 mm)
Load Capacity 200 lbs (90.7kg)
Dimensions (H x W x D) 22 x 39.5 x 3.4" (558.8 x 1003.3 x 86.36 mm)
