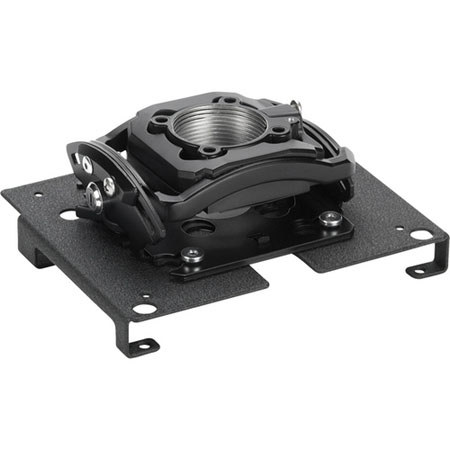

Chief RSMA278 Mini Elite Custom Projector Mount with SSM278 Bracket, Locking Option A

Usually ships in 3-5 days
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$164.00 Special Price Available $7 per week
Free Expedited Shipping
Add to Wishlist

About the Chief RSMA278

The Chief RSMA278 Mini Elite Custom Projector Mount with SSM278 Bracket (Locking Option A) provides a compact mounting solution for smaller projectors weighing up to 25 lb (11.3 kg). Included in the pack is a SSM278 Interface Bracket and all the necessary hardware that ensures quick and easy installation.

Centris technology allows for fingertip tilting and rotation of the display and automatically adjusts the mount to support different projector weights. MicroZone adjustments can be used for quick and precise projector registration. Once adjusted, the Elite Mount maintains the registration and the preset adjustments remain unaltered even if the mount is disconnected.

For maintenance purposes, you can use the Q-lock quick release lever to quickly connect or disconnect the projector from the mount. In addition, an integrated key and lock system makes the mount tamper-resistant.

Chief RSMA278 Includes

  • Chief RSMA278 Mini Elite Custom Projector Mount
  • SSM278 Bracket
  • 6 x 10-24 Thumb Nuts
  • All-Points Security Kit
  • 5 x Spacer (.500 x .316 x .500)
  • 5 x Screw Phillips Flat Head Machine (M4 x 25mm)
  • 5/32" Security Hex Key
  • Chief Warranty

Chief RSMA278 Features

  • Compact design is smaller than the RPA Elite by 1/3 and includes all the same features
  • MicroZone Adjustments make projector registration fast and precise (including flush mount installations)
  • Centris Technology enables effortless fingertip positioning and self-adjusts to support different projector weights
  • Integrated cable management through top of mount without additional accessories
  • Q-Lock Quick Release Lever provides quick connect/disconnect of the projector for service and enhanced security with an integrated key and lock system

Chief RSMA278 Specifications

Roll ±3deg.
Pitch ±15deg.
Yaw 360deg.
Load Capacity 25 lb (11.3 kg)
Dimensions (H x W x D) 1.83 x 4.37 x 5.07" (46 x 111 x 129 mm)
