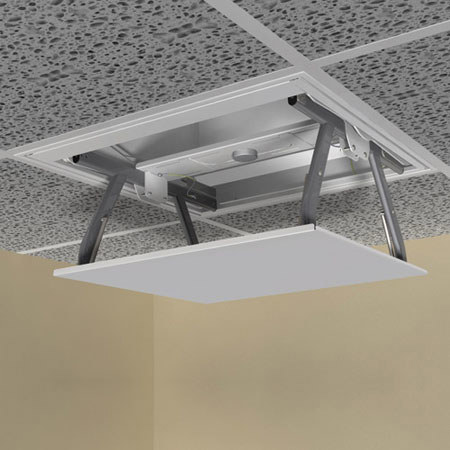

The Chief SL220 SMART-LIFT Lightweight Automated Projector Lift is designed to fit 2 x 2' (60 x 60cm) suspended and finished ceiling systems at homes and offices. Lightweight aircraft-grade aluminum construction makes handling easy. The lift enables smooth, quick and quiet movement of the projector into show or concealed position. It requires only one person for its easy 3-step installation.
Multiple control options include a single momentary push-button, low-voltage controller and IR. The SMART-LIFT Automated Projector Lift features AMX / Creston control compatibility and accepts 5-30V AC/DC for triggering commands. In addition, it is compatible with Chief RPA, RPM, RSM and RSA custom and universal projector mounts.
|Compatibility||Chief RPA, RPM, RSM & RSA projector mounts|
|Extension||8.5" / 21.59cm|
|Power Requirements||100-250 VAC, 50/60 Hz, 960 W, 120 VAC, 60 HZ, 8 A|
|Certifications||CE Approved, FCC Approved, TUV Approved, UL Listed, WEEE Approved|
|Load Capacity||30 lbs (13.6 kg)|
|Dimensions||23.3" x 23.3" x 11.5" (592 x 592 x 292 mm)
Max Equip Size: 9.5" x 16.5" x 18.5" (241 x 419 x 470 mm)
Ceiling Closure: 19.3" x 20.7" ( 490 x 526 mm)
