Chief

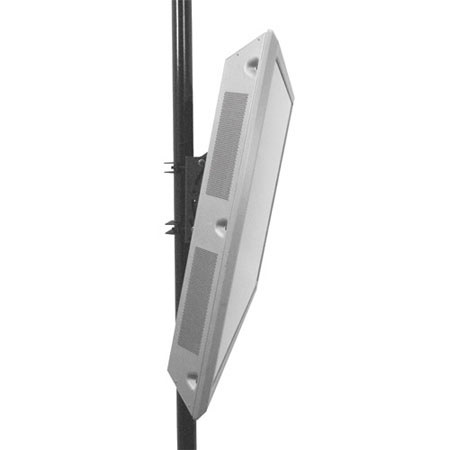

Chief TPM2000B Large Tilt Pole Mount without Interface

SKU: CHTPM2000B MFR: TPM2000B
Usually ships in 3-5 days
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$189.60 Special Price Available $8 per week
Free Expedited Shipping
Qty:
Add to Wishlist

About the Chief TPM2000B

The versatile Chief TPM2000B accommodates a large range of pole dimensions, includes security options and provides flexible features to achieve a custom installation. Perfect for exhibit, retail and digital signage applications, it also includes Chief's Q-Latch mounting system to secure the display with a lockable latch.

Chief TPM2000B Includes

  • Chief TPM2000B Large Tilt Pole Mount
  • Interface Bracket
  • (5/32") Hex Key
  • Chief Warranty

Chief TPM2000B Features

  • Three Mount Options: Truss/Pole Static Mount, Pole Pitch-Adjustable Mount and Truss Pitch-Adjustable Mount
  • Three Tilt Adjustment Options on TPM and TPP: +/- 15 deg. tilt on gravity centered axis point, lockable tilt, pre-set tilt locking points at 0deg., 5deg., 10deg. and 15 deg. to quickly and easily align multiple displays
  • Install mount horizontally and use pitch adjustment for side-to-side pivot
  • Install on vertical or horizontal truss
  • Attach displays in portrait or landscape orientation
  • TPS/TPP span most truss systems up to 14" (OD)
  • Truss/Pole clamps fit a wide variety of truss and pole dimensions
  • Finishing Cover accessories enhance aesthetics and cover hardware for added security
  • Exclusive Q-Latch Mounting System secures the Large Flat Panel Display with a lockable latch
  • Screen can be installed in portrait or landscape orientation
  • Integrated security allows display to be locked to mount by adding a padlock
  • Compatible with TPK clamp accessories

Chief TPM2000B Specifications

Minimum Depth 3.4" / 86.36 mm
Mounting Pattern Compatibility 200 x 200mm - 862 x 517mm (Universal Versions)
Orientation Landscape, Portrait
Post-Installation Leveling (Roll) Yes
Typical Screen Sizes 42" - 71" / 1066.8 - 1803.4 mm
Load Capacity 150 lbs / 68.039 kg
Dimensions (H x W x D) 16.2" x 17.1" x 3.4" / 411.48 x 434.34 x 86.36 mm
