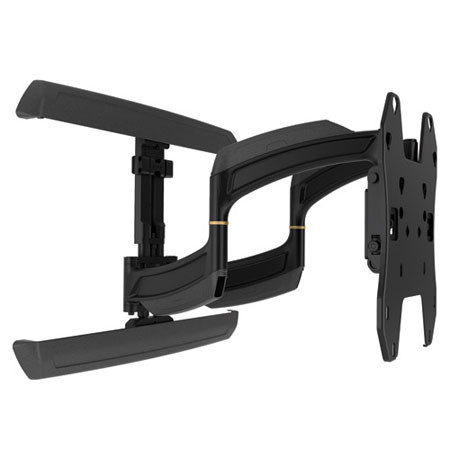

Chief TS318TU Medium THINSTALL Dual Swing Arm Wall Mount, 18" Extension, 75 lbs Load Capacity, Dual Stud

Chief
SKU: CHTS318TU MFR: TS318TU
Chief TS318TU: Picture 1 thumbnail Chief TS318TU: Picture 2 thumbnail

Original Price: $299.20 Special Price Available

See all shipping options

In Stock Online - Usually ships within 2-4 Days learn more

23% Off
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About Chief TS318TU

The Chief TS318TU Medium THINSTALL Dual Swing Arm Wall Mount (Dual Stud) provides lightweight, low-profile installation options for virtually any application. The TS318TU is a universal, full-motion mount designed for flat panel televisions from 26" to 52" and up to 75 pounds. This unit includes built-in cable management, post-installation leveling, 15 degrees of tilt and reaches 18" from the wall when fully extended.

Chief TS318TU Features

  • Ultra Low Profile: Sleek design collapses to 1.3" (33 mm), providing an ultra-low profile for all types of TVs, including LED, LCD and Plasma
  • Extends up to 18" (457 mm): Full extension maximizes viewing potential
  • Centris low-profile tilt: Provides up to 15deg. of effortless fingertip tilt to achieve optimal viewing angles
  • Centerless Lateral Shift: Post-installation lateral shift allows up to 16"(406 mm) of adjustment for limitless centering capability
  • Integrated Cable Management: Enclosed, tool-free cable covers and a wideopen wall plate make it easy to route power and signal cables and connect to the wall for a seamless installation
  • Post Installation Height Adjustment: A total of 1" (25mm) of post installation height adjustment allows for perfect screen placement and alignment

Chief TS318TU Specifications

Lateral Shift
16" (406.4mm)
Maximum Extension
18.2" (462.3mm)
Maximum Screen Thickness
5" (127mm)
Minimum Depth
1.8" (46 mm)
Mounting Pattern Compatibility
100 x 100mm - 600 x 400mm (Universal Versions)
Orientation
Landscape
Pivot (numerical value)
±90deg. (depending on screen width)
Post-Installation Leveling (Roll)
Yes
Solution Type
Universal
Tilt
+ 15deg., - 15deg.
Typical Screen Sizes
26 - 52" (66.04 - 132.08 cm)
Wall Stud Compatibility
16" / 406.4mm
Certifications
UL Listed
Load Capacity
75 lbs (34.01kg)
Dimensions (H x W x D)
17.2" x 22.6" x 1.8" (436.8 x 574.0 x 45.7mm)
