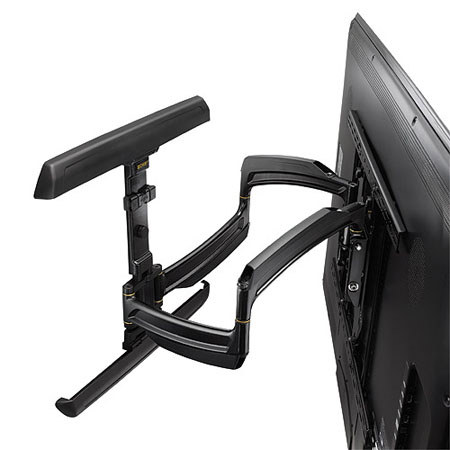

Chief TS525TU Large Thinstall Dual Swing Arm Wall Mount, 25" Extension

Chief TS525TU: Picture 1 thumbnail Chief TS525TU: Picture 2 thumbnail Chief TS525TU: Picture 3 thumbnail Chief TS525TU: Picture 4 thumbnail

See all shipping options

In Stock Online - Usually ships within 2-4 Days learn more

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

About Chief TS525TU

The Chief TS525TU Large Thinstall Dual Swing Arm Wall Mount is a mounting solution for all types of 37 to 58" (93.98 to 147.32 cm) TVs, including LED, LCD and Plasma. Integrating a low-profile design, the mount offers enhanced flexibility allowing it to be extended to 25" (635 mm) and collapsed to 1.5" (38mm). Centris low-profile tilt technology enables quick and easy fingertip tilt adjustments up to 15deg. You can move the display laterally up to 16" (406 mm) to achieve the optimum viewing position via a center less lateral shift mechanism. With the integrated cable management feature, you can easily route power and signal cables via the wide open wall plate and the enclosed, tool-free cable covers. The TS525TU supports height adjustment up to 1" (25 mm).

Chief TS525TU Features

  • Ultra Low Profile Sleek design collapses to 1.5" (38 mm), providing an ultra-low profile for all types of TVs, including LED, LCD and Plasma
  • Extends up to 25" (635 mm) Full extension maximizes viewing potential
  • Centris low-profile tilt Provides up to 15deg. of effortless fingertip tilt to achieve optimal viewing angles
  • Centerless Lateral Shift Post-installation lateral shift allows up to 16"(406 mm) of adjustment for limitless centering capability
  • Integrated Cable Management Enclosed, tool-free cable covers and a wide open wall plate make it easy to route power and signal cables and connect to the wall for a seamless installation
  • Post Installation Height Adjustment A total of 1" (25mm) of post installation height adjustment allows for perfect screen placement and alignment

Chief TS525TU Specifications

UL Listed
Lateral Shift
16" (406.4mm)
Manual Height Adjustment
1" (25.4mm)
Maximum Extension
25" (635mm)
Maximum Screen Thickness
5" (127mm)
Minimum Depth
1.5" (38.1mm)
Mounting Pattern Compatibility
100 x 100mm - 800 x 400mm (Universal Versions)
Pivot (numerical value)
±90deg. (depending on screen width)
Post-Installation Leveling (Roll)
Solution Type
+ deg., - 15deg.
Typical Screen Sizes
37 - 58" (939.8 - 1473.2mm)
Wall Stud Compatibility (inches)
16" (406.4mm)
Load Capacity
125 lbs (56.7kg)
Dimensions (H x W x D)
20.7 x 29.5 x 1.5" (525.7 x 749.3 x 38.1mm)
