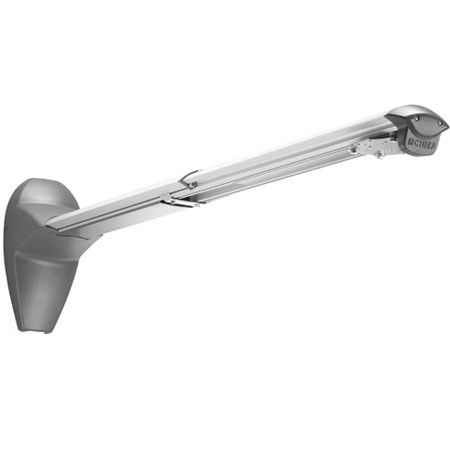

Chief WM130AU Large Short Throw & Universal Projector Mount Kit, Single Stud, 25 lbs Load Capacity

SKU: CHWM130AUS MFR: WM130AUS
Usually ships in 3-5 days
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

About the Chief WM130AU

The Chief WM130AU Short Throw Projector Arm/ Mini Elite Mount Kit is an ideal way to maximize the close-up capabilities of your short throw projector while saving room space and locating the projector above the audience.

The arm mounts securely to a single stud via the included wall plate and included hardware, supporting weights up to 25 lbs. The 24.5" adjustment range allows you to locate the projector and included mount from 28-53" from the wall with +/-3deg. pitch adjustment. Compatibility includes RPA standard, RPA Elite, RPA Mini and RPA Mini Elite mounts.

The included RSMAU Mini RPA Elite Projector Mount builds on the foundation of the highly successful RPA Elite mount, offering a compact design and smaller form factor which supports the trend towards sophisticated technology in a small package. This universal mount is ideal for those who wish to use it with more than one brand or who anticipate changing projectors in the future.

Although 33% smaller than the RPA, these mini mounts maintain 100% of the functionality of the larger mount, with independent MicroZone adjustments and a 25 lb capacity. Centris Technology provides fingertip positioning capability which automatically adjusts to accommodate specific projector weights. The RSMAU is also quick to connect or disconnect for lamp or filter changes via the Q-Lock Release Lever. Besides maintaining precise enough remounting to ensure that registration and preset adjustments remain unaffected, the lever integrates an "A" series key and lock.

Chief WM130AU Includes

  • Chief Large Short Throw Arm
  • Universal Projector Mount
  • Wall Bracket
  • Mounting Hardware
  • Universal Interface
  • Installation Guide
  • Chief Warranty

Chief WM130AU Features

  • Fast installation with innovative quick-connect system
  • Industry-first micro height and leveling adjustment
  • Extension from wall, 28.00-52.50" (711-1334 mm)
  • Precision image alignment with micro roll, pitch and yaw (using the RPA Elite mounts)
  • Integrated cable management system conceals and protects cables for a clean finish
  • Multiple levels of security, including All-Points locking hardware and four projector mount keyed locking options (A/B/C/D)

Chief WM130AU Specifications

Construction Steel
Adjustments Roll: 0deg.
Pitch: 3deg.
Yaw: 0deg.
Certifications UL Listed
Extension 28.0" - 53" (71.12 - 134.6cm)
Solution Type Universal
Load Capacity 25 lbs (11.3 kg)
Dimensions (H x W x D) 14.2" x 7.3" x 58.2" (360 x 185 x 1479 mm)
