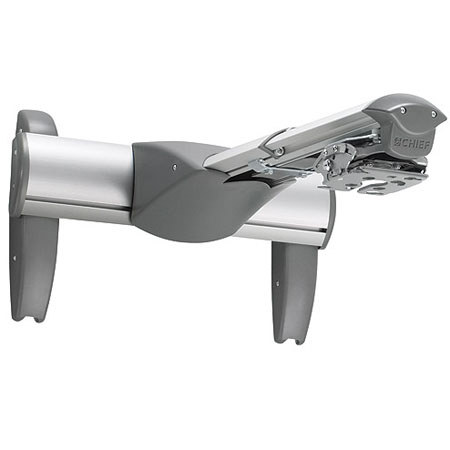

Chief WM210AU Ultra Short Throw & Universal Projector Mount Kit, Dual Stud, 25 lbs Load Capacity
What's Included With This Item:
- Chief Ultra Short Throw Arm
- Universal Projector Mount
- Wall Bracket
- Mounting Hardware
- Installation Guide
- Chief Warranty
The Chief WM210AU Short Throw Projector Arm/ Mini Elite Mount Kit is an ideal way to maximize the close-up capabilities of your short throw projector while saving room space and locating the projector above the audience.
Besides added stability, the dual stud design allows 10" of lateral shift along the extra wide base which mounts securely via the included wall plate and hardware, supporting weights up to 25 lbs The 6.75" adjustment range allows you to locate the projector and included mount from 12.75-19.5" from the wall with +/-3deg. pitch adjustment. Compatibility includes RPA standard, RPA Elite, RPA Mini and RPA Mini Elite mounts.
The included RSMAU Mini RPA Elite Projector Mount builds on the foundation of the highly successful RPA Elite mount, offering a compact design and smaller form factor which supports the trend towards sophisticated technology in a small package. This universal mount is ideal for those who wish to use it with more than one brand or who anticipate changing projectors in the future.
Although 33% smaller than the RPA, these mini mounts maintain 100% of the functionality of the larger mount, with independent MicroZone adjustments and a 25 lb capacity. Centris Technology provides fingertip positioning capability which automatically adjusts to accommodate specific projector weights. Shipped fully assembled, the RSMAU is also quick to connect or disconnect for lamp or filter changes via the Q-Lock Release Lever. Besides maintaining precise enough remounting to ensure that registration and preset adjustments remain unaffected, the lever integrates an "A" series key and lock.
|Extension||12.8" - 20" / 32.51 - 50.8cm|
|Load Capacity||25 lbs (11.3 kg)|
|Dimensions (H x W x D)||11.5" x 19.6" x 23.1" (292 x 498 x 587 mm)|
