Chief

Chief WM220 Medium Short Throw Wall Mount, 17.5-30" Extension, 50 lbs Load Capacity

SKU: CHWM220S MFR: WM220S
Usually ships in 3-5 days
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

About the Chief WM220

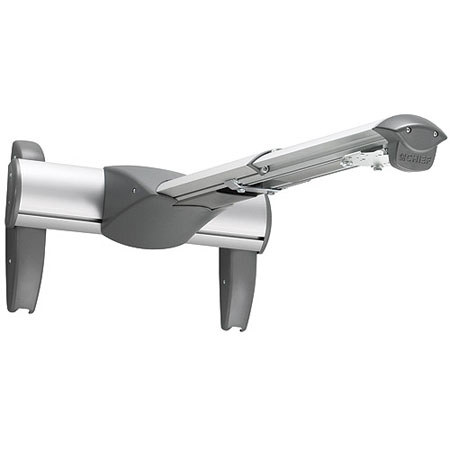

The Chief WM220 Medium Short Throw Wall Mount is an ideal way to maximize the close-up capabilities of your short throw projector while saving room space and locating the projector above the audience.

Besides added stability, the dual stud design allows 10" of lateral shift along the extra wide base which mounts securely via the included wall plate and hardware, supporting weights up to 25 lbs. The 12.75" adjustment range allows you to locate the projector on an optional mount from 22-35.5" from the wall with +/-3deg. pitch adjustment. It is compatible with RPA standard, RPA Elite, RPA Mini and RPA Mini Elite mounts.

Chief WM220 Includes

  • Chief WM220 Medium Short Throw Wall Mount
  • Wall Bracket
  • Mounting Hardware
  • Installation Guide
  • Chief Warranty

Chief WM220 Features

  • Fast installation with innovative quick-connect system
  • Industry-first micro height and leveling adjustment
  • Integrated lateral shift
  • Telescoping extension, 1.5'-2.5' (457-762 mm)
  • Precision image alignment with micro roll, pitch and yaw (using the RPA Elite mounts)
  • Integrated cable management system conceals and protects cables for a clean finish
  • Multiple levels of security, including All-Points locking hardware and four projector mount keyed locking options (A/B/C/D)
  • Compatible with the RPA, RPA Elite, RPA Mini and RPA Elite Mini Series projector mounts

Chief WM220 Specifications

Adjustments Roll: 0deg.
Pitch: 3deg.
Yaw: 0deg.
Certifications UL Listed
Lateral Shift 10" (25.4 cm)
Extension 17.5" - 30" (444.5 - 762mm)
Load Capacity 50 lbs (22.6 kg)
Dimensions (H x W x D) 11.5" x 19.6" x 35.6" (292.1 x 497.8 x 904.2 mm)
