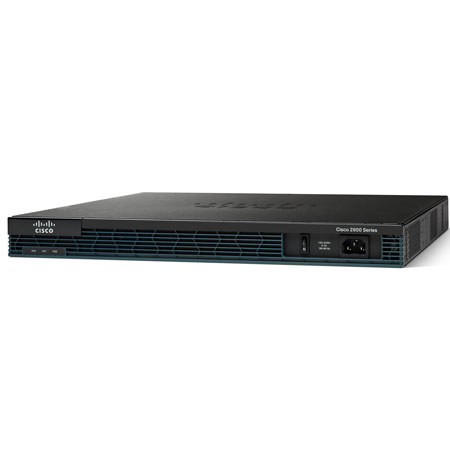

Cisco 2901 Integrated Services Router with 2 GE, 4 EHWIC Slots

Key Features

• Service integration: The Cisco 2901 offers increased levels of services integration with data, security, wireless and mobility services, enabling greater efficiencies and cost savings
• Services on demand: The Universal image contains all of the Cisco IOS Software technology sets that can be activated with a software license allowing your business to quickly deploy advanced features without downloading a Cisco IOSSoftware image
• High performance with integrated services: The Cisco 2901 enables deployment in high-speed WAN environments with concurrent services enabled up to 75Mbps
• Network agility: Designed to address customer business requirements, the Cisco 2901 with the modular architecture offers a performance range of modular interfaces and services as your network needs grow
• Energy efficiency: Services integration and modularity on a single platform performing multiple functions optimizes raw-materials consumption and energy usage. High-efficiency power supplies are provided with each platform
• Modular Platform: The Cisco 2900 Series ISRs are highly modular platforms with several types of module slots to add connectivity and services for varied branch-office network requirements
• Processors: The Cisco 2901 is powered by high-performance multi-core processors that can support the growing demands of high-speed WAN connections to the branch-office while also running multiple concurrent services
• Embedded IP Security/Secure Sockets Layer (IPsec/SSL) VPN hardware acceleration: Embedded hardware encryption acceleration is enhanced to provide higher scalability, which, combined with an optional Cisco IOS Security license, enables WAN link security & VPN services (Both IPSec & SSL acceleration)
• Integrated Gigabit Ethernet ports: All onboard LAN/WAN ports are 10/100/1000 Gigabit Ethernet routed ports. One of the three 10/100/1000 Ethernet WAN ports on the Cisco 2921 and 2951 supports Small Form-Factor Pluggable (SFP)-based connectivity in lieu of a RJ-45 port and enabling fiber connectivity
• Innovative universal serial-bus (USB)-based console access: The traditional console and auxiliary ports are also available. A new, innovative USB console port offers management connectivity for devices without a serial port such as modern laptop computers
• USB 2.0 ports: Two high-speed USB 2.0 port is supported. The USB port enables another mechanism for secure-token capabilities and storage
• Encapsulations: Ethernet, 802.1q VLAN, Point-to-Point Protocol, Multilink Point-to-Point Protocol, Frame Relay, Multilink Frame Relay, High-Level Data Link Control (HDLC), Serial (RS-232, RS-449, X.21, V.35 and EIA-530), Point-to-Point Protocol over Ethernet (PPPoE) and ATM
• Traffic management: QoS, Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Hierarchical QoS, Policy-Based Routing (PBR), Performance Routing (PfR) and Network-Based Advanced Routing (NBAR)
• WSMA: The Web Services Management Agent (WSMA) defines a mechanism through which you can manage a network device, retrieve configuration data information and upload and manipulate new configuration data
• EEM: Cisco IOS EEM is a distributed and customized approach to event detection & recovery offered directly in a Cisco IOS Software device. It offers the ability to monitor events & take informational, corrective, or any desired EEM action when the monitored events occur / when a threshold is reached
• IPSLA: Cisco IOS IP SLAs enable you to assure new business-critical IP applications, as well as IP services that use data, voice and video, in an IP network
• SNMP, RMON, Syslog, NetFlow and TR-069: Cisco 2901 Integrated Services Routers also support SNMP, Remote Monitoring (RMON), syslog, NetFlow andTR-069 in addition to the embedded management features previously mentioned
• Cisco Enhanced High-Speed WAN Interface Card (EHWIC): The EHWIC slot replaces the high-speed WAN interface card (HWIC) slot and can natively support HWICs, WAN interface cards (WICs) and voice/WAN interface cards (VWICs)
• Modular platform: The Cisco 2901 ISRs are highly modular platforms with multiple module slots to provide connectivity and services for varied branch-office network requirements
• Cisco Internal Services Module: A single ISM slot provides flexibility to integrate intelligent services modules that do not require interface ports. Each ISM Slot offers high data throughput capacity
• Compact Flash Shots: Two external compact flash slots are available on the Cisco 2901. Each slot can support high-speed storage densities upgradeable to 4GB in density
