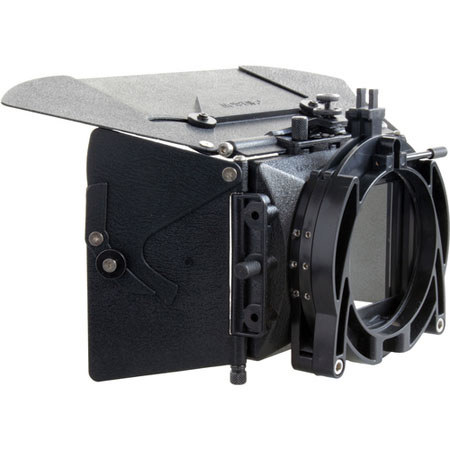

Cavision 3x3" Hard Shade Matte Box with Top and Side Flaps

Cavision
SKU: CIMB3485S MFR: MB3485S

About Cavision

The Cavision 3 x 3" Hard Shade Matte Box with Top and Side Flaps can be used as a clamp-on type, or with either 8 mm or 15 mm rods support system. It is ideal for DSLR cameras but also fits a large variety of other cameras and lenses including Broadcast and prosumer HD.

Cavision Features

  • 270deg. Rotating filter stage for use with polarizing and graduated filters
  • Lightweight: Ideal for use on smaller cameras and when mobility is required
  • New wider shade allows for wider lenses to be used
  • Adapter ring to allow matte box to be used on 5D MII/MIII with 24-105mm lens (at widest angle with no vignetting)

Cavision Specifications

Filter trays
2 total, 1 rotatable
Degree of rotation
270 deg
Filter size
3x3" glass or resin (max thickness of 4mm) in filter trays; cokin "P" filters fit loosely in filter stage slots only (not in filter trays)
Back mount opening
Diameter: 85 mm / 3.34"
Fit Lens filter thread
82, 77, 72, 62, 67, 58 & 52mm (with appropriate adapter rings)
Fit DSLR lens wide angle
APS-C: 15mm & up. Full frame: 35mm & up (may work at wider angles on lenses with less than 77mm filter diameter; may also work on wider lenses if clamped directly on lens front)
Construction
Aluminum & ABS
Filter tray material
ABS
Hard Shade Material
ABS
Dimensions
17.2 x 13 x 6.8 cm (6.77 x 5.11 x 2.67")
Weight
360g (12.69 oz) (matte box = 180g; top flap = 100g; pair of side flaps = 80g)
Q&A

Questions & Answers Powered by TurnTo®

Questions about this item:

Shopper  Does the lens "float" inside the doughnut or do you have to use threaded adapters and mount it to the lenses ?
MARK S  The lens floats. There are flexible "donuts" that prevent light from behind the camera getting into the box. The most flexible type slips over the rear-most part of the box and is held by elasticity and the part going on the lens can be elastic or draw string tightened. There is not quite one-size-fits-all on the lens side, but if you don't have a huge range of lens diameters, for example a prime wide or normal lens and a fast huge zoom one would be enough.
Shopper  Is the matte compatible with Canon 60D ?
Andrew R  This unit is not camera specific and should be relatively universal. Adapters are included for various lens diameters. Fit Lens filter thread 82, 77, 72, 62, 67, 58 & 52mm (with appropriate adapter rings) Fit DSLR lens wide angle APS-C: 15mm & up. Full frame: 35mm & up (may work at wider angles on lenses with less than 77mm filter diameter; may also work on wider lenses if clamped directly on lens front)
