Cavision

Cavision MHE52-RCMBG LCD Viewfinder Set with Plate for Canon 5D MII, Battery Grip, 3.0" Rubber Adapter and Swing-Away Connector

SKU: CIMHE52RCMBG MFR: MHE3Q-PBG
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$147.50
Free Shipping
Qty:

Add to Wishlist In Stock

About the Cavision MHE52-RCMBG

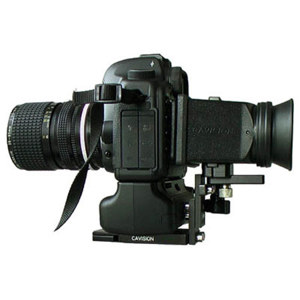

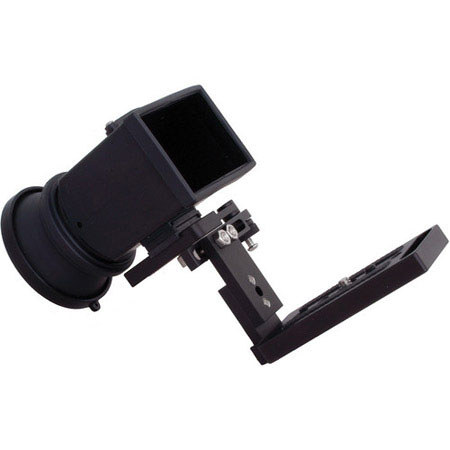

Cavision MHE52-RCMBG allows LCD Viewfinder to be attached directly to the battery grip via 1/4" thread. It is specifically designed for use on the Canon 5D Mark II with Battery Grip. It also features horizontal, vertical and forwards/backwards adjustment.

Cavision MHE52-RCMBG Includes

  • Cavision LCD Viewfinder (MHE52)
  • Swing Away Connection Piece (MHE52C-SA-U)
  • Minid-DV Camera Plate (RPC4590) with 1/4" & 3/8" Tripod Connection Thread
  • Rubber Adapter for 3.0" LCD (MHE52-R3)
  • Cavision Warranty

Cavision MHE52-RCMBG Features

  • Fits perfectly on Sony TG1 but can also be used on 3.5" LCD's with MHE52-R adapter and on 3.0" LCD's with MHE52-R3 adapter
  • Mini-dv plate connector (MHE52-C2) & swing away connector
  • Virtually transforms the LCD screen into a viewfinder
  • Create professional quality HD video with your inexpensive, compact, lightweight camera
  • Viewfinder eye-piece as large as those on broadcast cameras like the F900
  • Ideal for daylight situations when the LCD is difficult to view
  • Greatly enhances the ability to focus the image by eye
  • Allows for more accurate composition of the scene
  • Can also be used on other 3" or under LCD's with use of fastening strap
  • Allows LCD Viewfinder (MHE52) to be attached to mini-dv plate (RPMD90-D)
  • Ideal for DSLR cameras (like 5D MII) where other attachment methods may not be possible
  • Features horizontal and forwards/backwards adjustment, as well as swing away function for easy access to LCD / buttons & camera viewfinder (note: swings to the right)
  • Universal swing away piece (MHE52C-SA-U) also available (only compatible with RS15II + RPMD90 rods support system)
  • Allows LCD Viewfinder to be attached directly to the camera via 1/4" thread
  • Ideal for Canon 5D Mark II (and other DSLR cameras) where other attachment methods may not be possible
  • Features both horizontal and forwards/backwards adjustment

Cavision MHE52-RCMBG Specifications

Number of lens elements 1
Lens Magnification 6x
Lens material Glass
Lens O.D. 52mm
Eye-cup material rubber
Eye-cup O.D 63mm
Inside Front Dimensions 72mm(W) x 48mm(H)
Outside Dimensions 78mm(W) x 54mm(H) x 89mm(L)
Weight 75g
