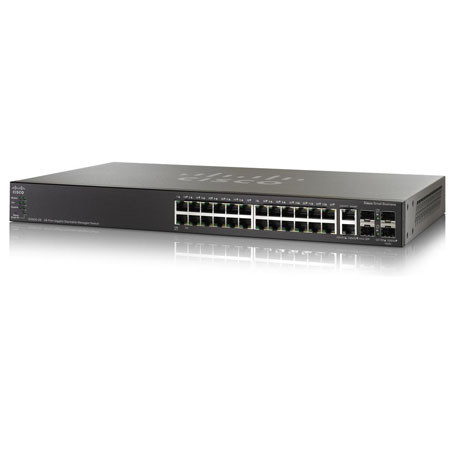

Cisco SG500-28P 28-Port Gigabit PoE Stackable Managed Switch

SKU: CISG50028PK9

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Cisco SG500-28P Specifications

  • Switch Type

    Rackmount

  • Standards

    IEEE 802.3/3u/3ab, IEEE 802.3af

  • Network Management Type

    Managed

  • Jumbo Frames

    Yes

  • Ports

    24 x RJ45 + 4 x Gigabit Ethernet

  • Speed

    10/100/1000Mbps

  • MAC Address Table

    16K

  • Buffer Memory

    8MB

  • Security

    SSH
    SSL
    IEEE 802.1X
    STP BPDU Guard
    STP Root Guard
    DHCP snooping
    IP Source Guard (IPSG)
    Dynamic ARP Inspection (DAI)
    Secure Core Technology(SCT)
    Port security
    RADIUS/TACACS+
    RADIUS accounting
    Storm control
    DoS prevention
    Congestion avoidance
    Multiple user privilege levels in CLI
    ACLs

  • PoE

    Yes

  • Stackable

    Yes

  • SNMP

    Yes

  • QoS

    Yes

  • LACP

    Yes

  • Layer

    2-3

  • Port Mirroring

    Yes

  • Cabling

    Unshielded twisted pair (UTP) Category 5 or better; Fiber options (SMF and MMF); Coaxial SFP+ for stacking purposes

  • LEDs

    System, Link/Act, Speed, Gigabit, PoE

  • Button

    Reset button

  • VLAN Support

    Yes

  • Interface

    24 10/100/1000 PoE ports
    4 Gigabit Ethernet (2 combo Gigabit Ethernet + 2 1GE/5GE SFP)

  • Power Dedicated to PoE

    180W

  • Number of Ports That Support PoE

    24

  • Switching Capacity

    72 Gbps

  • Capacity in mpps

    41.67(64-byte packets)

  • Green Power

    Yes

  • Flash

    32 MB

  • 800 MHz ARM CPU memory

    256 MB

  • Power

    100-240V, 47-63 Hz, internal, universal

  • Temperature

    0deg.C to 40deg.C (32deg.F to 104deg.F)

  • Humidity

    10% - 90%, Non-condensing

  • Dimensions

    440 x 44 x 257 mm (17.3 x 1.73 x 10.11")

  • Weight

    3.95 kg (8.70 lbs)

About Cisco SG500-28P

The Cisco SG500-28P is a stackable and managed Gigabit Ethernet switch with 28-ports, including 2 combination ports and 2 Small Form-Factor Pluggable (SFP) ports. The SG500-28P provides a strong foundation for your business applications, both current and in the future. The SG500-28P offers true stacking, advanced security features and energy-saving technology. The SG500-28P provides QoS and other network elements to deliver the reliability and performance demanded from business environments. The Cisco SG500-28P switch is simple to configure and manage with a variety of management tools.

Cisco SG500-28P Features

  • Easy deployment and use: Intuitive graphical interfaces, remote management capabilities, Textview command-line interface, Cisco Configuration Assistant and automated deployment tools simplify setup and configuration
  • High reliability and resiliency: Stacking capabilities, dual images and advanced redundancy protocols keep your customers' networks running, even after a major failure
  • True stacking: Some switches claim to support stacking but in practice must be managed and configured individually. Cisco 500 Series switches allow you to manage and configure multiple switches in a stack as a single unit, with a single IP address
  • Strong security: Use access control lists (ACLs), guest virtual LANs (VLANs), encrypted management data, IEEE 802.1X port security and other advanced network defense mechanisms features to safeguard customer networks
  • Advanced IP telephony support: Cisco 500 Series switches can automatically configure connected IP phones with the right VLAN and quality of service (QoS) parameters which prioritizes voice traffic
  • Advanced traffic management: Supports static Layer 3 routing capabilities, which gives you more flexibility to organize and optimize networks
  • IPv6: Cisco 500 Series switches support the transition to next-generation networking and operating systems with support for IPv6. The switches received the USGv6 and IPv6 Gold certification
  • Power efficiency: Uses low-power chipsets, fanless designs and other "green" features reduce power consumption and enable quieter operation
  • Expandability: The 500 models offer 1 Gigabit Ethernet or 5 Gigabit Ethernet expansion slots
  • Customer peace of mind: Tested to ensure it delivers the reliability customers expect from Cisco and is easy to integrate with other Cisco voice, video, security and networking products

What's in the box:

  • Cisco SG500-28P 28-Port PoE Gigabit Stackable Managed Switch
  • Rack Mount Kit
  • Power Cord
  • Serial Cable
  • CD-ROM with User Documentation
  • Quick-Start Guide
  • Cisco Warranty
