Shining Technology FW1256-ACPK1 Accessory Power Pack for CitiDISK

SKU: CJCDAP1

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Shining Technology FW1256-ACPK1 Specifications

  • Hot-shoe Adapter: Dimensions (L x W x H)

    5.4 in x 3.3 in x 1.95 in / 140 mm x 85 mm x 50 mm

  • Camera Hot-shoe Adapter: Wheel diameter

    1.5 in / 40 mm

  • Camera Hot-shoe Adapter: Material

    Polycarbonate

  • FireWire Cables: Black cable-tie (W x L)

    2.5 mm x 20 cm

  • FireWire Cables: IE1395-66-50V Port

    6pin-to-6pin

  • FireWire Cables: IE1395-64-50V Port

    6pin-to-6pin

  • FireWire Cables: Total length

    56 cm

  • Ext. Batt Holder: Dimensions (L x W x H)

    3 in x 2.3 in x 1.6 in / 78 mm x 60 mm x 43 mm

  • External Battery Holder: Wheel diameter

    1.5 in / 40 mm

  • External Battery Holder: Material

    Polycarbonate

  • External Battery: Dimensions (L x W x H)

    29.9 in x 22.8 in x 10.2 in / 76 mm x 58 mm x 26 mm

  • External Battery: Weight

    128 g / 4.5 oz

  • External Battery: Input

    DC +12 Volt / 1 Amperage

  • External Battery: Output

    DC +6.3 - 8.4 Volt / 2 Amperage

  • External Battery: Capacity

    2200 mAh

  • External Battery: Charging time

    3-4 hours

  • Weight

    2.00 lbs / 0.90kg

About Shining Technology FW1256-ACPK1

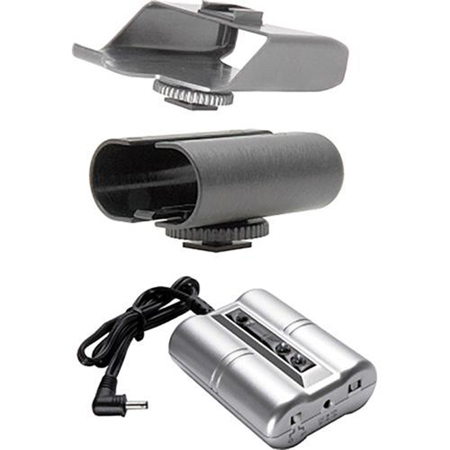

The Shining Technology FW1256-ACPK1 is an accessory kit for the CitiDISK. It contains the Camera Hot-shoe Adapter (HSHU1256), 2 FireWire cables (IE1394-66-50V & IE1394-64-50V), the External Battery Holder (BHDR21865) and the External Battery (BATT21865).
1. Camera Hot-shoe Adapter ( HSHU1256 ): This hot-shoe adapter comfortably fits one FW1256( DV, HDV, HD ) unit. Includes one FW1256. The whole unit's shoe-bracket inserts into the hot-shoe of the camera and securely fastens with a wheel. Adapter has built-in hot-shoe, allowing other units such as external battery, lights, or wireless microphone to plugged in even when the adapter is mounted to the camera. Automatically and securely locks the FW1256 into the compartment once the unit is inserted.
2. FireWire Cables (IE1394-66-50V & IE1394-64-50V): Uses the FireWire cable to connect the FW1256 unit to the camera's iLink port (4-pin) while shooting a scene. Alternatively, connect the cable to a computer's FireWire (IEEE1394) ports (6-pin) while editing.
3. External Battery Holder (BHDR21865): Comfortably fits one BATT21865. Includes a BATT21865. The whole unit's shoe-bracket inserts into the hot-shoe of the camera or the returned hot-shoe of HSHU1256 and securely fastens with a wheel on top of the camera's hot-shoe or on top of the HSHU1256 adapter. Automatically locks the battery into the compartment once the battery is inserted.
4. External Battery (BATT21865): This external battery extends CitiDISK DV, HDV or HD for an additional 3-hours of operating time. Unplug the external battery when the battery is nearly empty and CitiDISK's internal battery automatically switches on without interrupting recording. After the external battery is fully charged, plug it back in and the CitiDISK's internal battery switches off, resulting in smooth, non-stop shooting.

Shining Technology FW1256-ACPK1 Features

  • Adapter has built-in hot-shoe
  • Alternatively, connect the cable to a computer's FireWire (IEEE1394) ports (6-pin) while editing
  • Automatically locks the battery into the compartment once the battery is inserted
  • External battery extends CitiDISK DV, HDV or HD for an additional 3-hours of operating time

Key Features

  • Adapter has built-in hot-shoe
  • Alternatively, connect the cable to a computer's FireWire (IEEE1394) ports (6-pin) while editing
  • Automatically locks the battery into the compartment once the battery is inserted
  • External battery extends CitiDISK DV, HDV or HD for an additional 3-hours of operating time

What's in the box:

  • CitiDisk Camera Hot-Shoe Adapter (HSHU1256)
  • FireWire Cables (IE1394-66-50V & IE1394-64-50V)
  • External Battery Holder (BHDR21865)
  • External Battery (BATT21865)
  • Shining Technology 1 Year Limited Warranty
