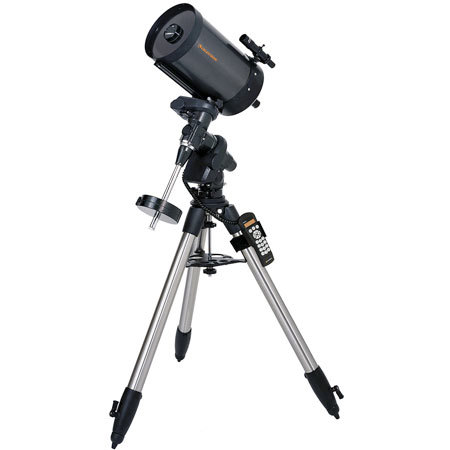

Celestron C8-SGT-XLT Advanced Series 8" Schmidt Cassegrain Telescope with CG-5 GT Computerized EQ Mount & XLT Coatings
Mfr. Part: 11026XLT SKU: CNC8SGTXLT

enlarge image
|
|
 |
|
 |
 |
Item Includes
8" Schmidt-Cassegrain, 2032mm focal length (f/10), Starbright XLT Coatings, 6x30 finderscope, 25mm E-LUX eyepiece (81x) - 1-1/4", star diagonal -1-1/4", visual back - 1-1/4", Heavy Duty (CG- 5) German Equatorial Computerized GT Mount, The Sky Level 1 CD ROM, Rugged adjustable height 2" steel leg tripod
|
Description
For a completely automated GoTo system, the C8-SGT (#11026) comes mounted on the CG-5 GT computerized EQ mount and allows access to features like automatic star alignment capability and GoTo slewing to over 40,000 objects. Equipped with high speed motors and hand control, the C8-SGT allows you to remotely slew your telescope to desired objects quickly and accurately. No matter at what level you are starting out, this precision instrument will satisfy your needs both visually and photographically.
CG-5 Mount. Precision engineered for stability The new German Equatorial mount has precision worm gears on both axes for extremely smooth stability. The key element that makes this system the most stable in its class is the NEW 2" Stainless Steel heavy-duty tripod legs with larger and more substantial legs that offer excellent damping characteristics for more stable views. The CG-5 also has a convenient latitude scale for easier alignment and an optional polar finder scope for the ultimate in precision alignments.
StarBright XLT high transmission optical system design: There are three major components that make up the Star Bright XLT high transmission optical system design: 1. Unique enhanced multi-layer mirror coatings 2. Multi-layer anti- reflective coatings 3. High Transmission Water White glass. These three components of the StarBright XLT coatings result in one of the finest coatings available. |
Features
 |
StarBright XLT Optical System Design |
 |
GPS-compatible with optional CN16 GPS Accessory |
 |
Proven NexStar® computer control technology |
 |
RS-232 communication port on hand control to control the telescope via a personal computer |
 |
Autoguider port for long exposure astrophotography |
 |
40,000+ object database with 400 user-definable objects and expanded information on over 200 objects |
 |
Custom database lists of all the most famous deep-sky objects by name and catalog number; the most beautiful double, triple and quadruple stars; variable star; solar systems; objects and asterisms |
 |
Double line, 16-character Liquid Crystal Display Hand Control with 19 fiber optic backlit LED buttons |
 |
DC Servo motors with encoders on both axes |
Specifications
| Eyepiece | 1-1/4" 25mm (81x) |
| Optical tube | 203mm (8") SCT Schmidt-Cassegrain |
| Focal Length / F# | 2032mm f/10 |
| Finderscope | 6x30 |
| Mount | CG-5 German Equatorial
Database: 40,000+ objects, 400 user defined programmable objects |
| Motor Drive | DC Servo motors with encoders, both axes Max Slew Speed; 4°/second Software Precision; 24bit, 0.08 arcsec calculation Hand Control: Double line, 16 character Crystal Display; 19 fiber optic backlit LED buttons Hand Control Ports: RS-232 communication port on hand control Motor Ports: Aux Port, Autoguide Ports Tracking Rates: Sidereal, Solar and Lunar Tracking Modes: EQ North & EQ South Alignment Procedures: AutoAlign, 2-Star Alignment,Quick Align |
| Star Diagonal | 1¼" |
| Accessory Tray | yes |
| Tripod | 2" Stainless Steel |
| Highest Useful Magnification | 480x |
| Lowest Useful Magnification | 29x |
| Limiting Stellar Magnitude | 14 |
| Resolution: Rayleigh | 0.68 arc seconds |
| Dawes Limit | .57 arc seconds |
| Photographic Resolution | 200 lines/mm |
| Light Gathering Power | 843x unaided eye |
| Field of View: standard eyepiece | 0.64° |
| Linear FOV (@1000 yds) | 33.6 ft |
| Optical Coatings | Starbright Coating |
| Secondary Mirror Obstruction | 2.5" - 10% by area - 31% by diameter |
| Optical Tube Length | 17 inches |
| Telescope Weight | 54.5 lbs |
| | |
|
 |
|
|
|
|
|
|
 |
|
