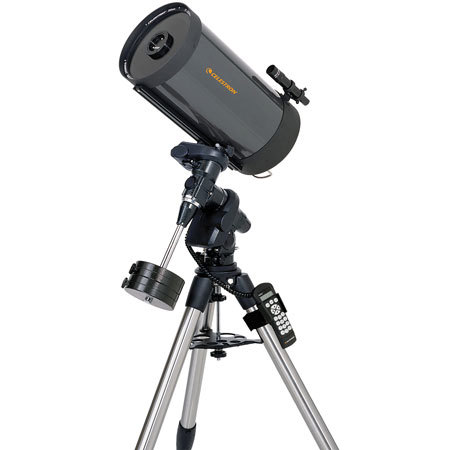

Celestron C9 1/4-SGT Advanced Series 9 1/4" Schmidt Cassegrain Telescope with CG-5 GT Computerized EQ Mount & XLT Coatings
Mfr. Part: 11046XLT SKU: CNC9SGTXLT
enlarge image
|
|
 |
|
|
|
9 1/4" Schmidt-Cassegrain, Starbright XLT Coatings, 6x30 finderscope, 25mm E-LUX eyepiece (94x) - 1-1/4", star diagonal -1-1/4", visual back - 1-1/4", Heavy Duty (CG- 5) German Equatorial Computerized GT Mount, The Sky Level 1 CD ROM, Rugged adjustable height 2" steel leg tripod
|
For a completely automated GoTo system, the C91/4-SGT (#11046) comes mounted on the CG-5GT computerized EQ mount and allows access to features like automatic star alignment capability and GoTo slewing to over 40,000 objects. Equipped with high speed motors and hand control, the C91/4-SGT allows you to remotely slew your telescope to desired objects quickly and accurately. The 9 1/4" was specifically designed for visual infinity focus when using 2" eyepieces and has an optimized baffle system to benefit astrophotography by minimizing vignetting at the edge of the field of view. Its longer primary focal length and lower magnification secondary mirror contribute to a flatter field of view at the focal plane and helps to further reduce optical aberrations. No matter at what level you are starting out, this precision instrument is design to expand as your interest in astronomy grows.
CG-5 Mount, Precision engineered for stability.
The new German Equatorial mount has precision worm gears on both axes for extremely smooth stability. Th e key element that makes this system the most stable in its class is the NEW 2" Stainless Steel heavy-duty tripod legs with larger and more substantial legs tha t offer excellent damping characteristics for more stable views. The CG-5 also h as a convenient latitude scale for easier alignment and an optional polar finder scope for the ultimate in precision alignments.
StarBright XLT high transmission optical system design:
There are three major components that make up the Star Bright XLT high transmission optical system design:
1. Unique enhanced multi-layer mirror coatings
2. Multi-layer anti- reflective coatings
3. High Transmission Water White glass.
These three components of the StarBright XLT coatings result in one of the finest coatings available. |
 |
StarBright XLT Optical System Design |
|
Includes NexRemote Control Software: which allows you to control the Telescope from a personal computer |
|
GPS-compatible with optional CN16 GPS Accessory |
|
Proven NexStar® computer control technology |
|
RS-232 communication port on hand control to control the telescope via a personal computer |
|
Autoguider port for long exposure astrophotography |
|
40,000+ object database with 400 user-definable objects and expanded information on over 200 objects |
|
Custom database lists of all the most famous deep-sky objects by name and catalog number; the most beautiful double, triple and quadruple stars; variable star; solar systems; objects and asterisms |
|
Double line, 16-character Liquid Crystal Display Hand Control with 19 fiber optic backlit LED buttons |
|
DC Servo motors with encoders on both axes |
| Eyepiece | 1-1/4" 25mm (94x) |
| Optical tube | 235mm (9.25") SCT Schmidt-Cassegrain |
| Focal Length / F# | 2350mm f/10 |
| Finderscope | 6x30 |
| Mount | CG-5 German Equatorial
Database: 40,000+ objects, 400 user defined programmable objects |
| Motor Drive | DC Servo motors with encoders, both axes
Max Slew Speed; 4°/second
Software Precision; 24bit, 0.08 arcsec calculation
Hand Control: Double line, 16 character Crystal Display; 19 fiber optic backlit LED buttons
Hand Control Ports: RS-232 communication port on hand control
Motor Ports: Aux Port, Autoguide Ports
Tracking Rates: Sidereal, Solar and Lunar
Tracking Modes: EQ North & EQ South
Alignment Procedures: AutoAlign, 2-Star Alignment,Quick Align |
| Star Diagonal | 1¼" |
| Accessory Tray | yes |
| Tripod | 2" Stainless Steel |
| Highest Useful Magnification | 555x |
| Lowest Useful Magnification | 34x |
| Limiting Stellar Magnitude | 14.4 |
| Resolution: Rayleigh | 0.59 arc seconds |
| Dawes Limit | .49 arc seconds |
| Photographic Resolution | 200 lines/mm |
| Light Gathering Power | 1127x unaided eye |
| Field of View: standard eyepiece | 0.55° |
| Linear FOV (@1000 yds) | 29 ft |
| Optical Coatings | Starbright Coating |
| Secondary Mirror Obstruction | 3.35" - 13% by area - 36% by diameter |
| Optical Tube Length | 22 inches |
| Telescope Weight | 62 lbs |
| | |
|
|
|
|
|
|
|
|
