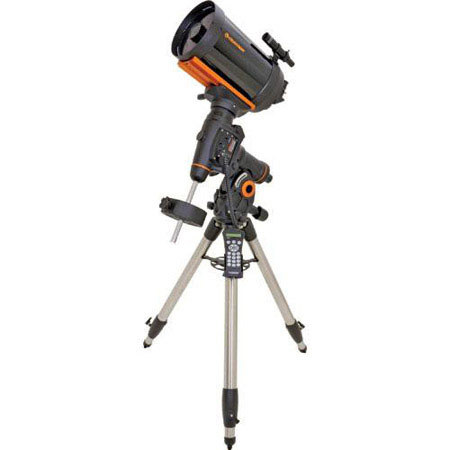

Celestron CGEM 800, 8" Schmidt-Cassegrain Telescope

Mfr. Part: 11097     SKU: CNCGEM800

Celestron CGEM 800, 8" Schmidt-Cassegrain Telescope
enlarge image

Free Shipping view details



Product Rating Write a Review

We ran out of this Item Temporarily.
Please note: You can order this now and have us ship it as soon as it arrives.
We will not charge your card for any backordered items, until it is ready to actually ship.

Item Includes

8" Schmidt-Cassegrain StarBright XLT coatings - 6x30 finderscope - Star diagonal 1.25" - 25 mm eyepiece (81x) 1.25"- Visual back 1.25" - CGEM Computerized German Equatorial mount - Rugged adjustable height - steel leg tripod with center brace/accessory tray- Flash upgradeable hand control with 40,000+ object database - One 17 lb counterweight - NexRemote Telescope Control Software - RS-232 Cable - Car battery adapter

Description

CGEM - 800 - General Features
· 8" Schmidt-Cassegrain telescope
· CGEM Computerized Equatorial Mount
· Schmidt-Cassegrain mechanism that moves the primary mirror to adjust focus is supported by two pre-loaded ball bearings, minimizing the "mirror flop" typical of bushing focus mechanisms
· Celestron's premium StarBright XLT coatings
· 6x30 finderscope to help accurately find objects
· Ultra Sturdy 2" steel tripod with Accessory Tray
· Star diagonal provides more comfortable viewing position when observing objects that are high in the sky

CGEM - 800 - Computerized Mount Features
· 40,000 object database with over 100 user-definable objects and expanded information on over 200 objects
· Proven NexStar computer control technology
· New "All-star" Polar alignment uses any bright star for a quick and accurate Polar alignment
· Software Features include: Mount Calibration, Database Filter Limits, Hibernate, five Alignment Procedures
· Flash upgradeable hand control software and motor control units for downloading product updates over the Internet
· Custom database lists of all the most famous deep-sky objects by name and catalog number: the most beautiful double, triple and quadruple stars; variable star; solar systems; objects and asterisms
· Permanent programmable periodic error correction (PEC) - corrects for periodic tracking errors inherent to all worm drives
· Drive Motors - Low Cog DC Servo motor with integrated optical encoders offer smooth, quiet operation and long life. The motor armatures are skewed to minimize cogging which is required for low speed tracking.
· Internal Cable wiring for trouble-free setup and transportation
· Designated six-pin RJ-12 modular jack, ST-4 compatible guide port
· Autoguide port and auxiliary ports located on the electronic plate for long exposure astrophotography
· Double-line, 16-character Liquid Crystal Display Hand Control with backlit LED buttons for easy operation of goto features
· RS-232 communication port on hand to control the telescope via a personal computer
· Includes NexRemote telescope control software, for advanced control of your telescope via computer
· Secure power plug ensures that the Mount's power source is not accidentally disconnected
· GPS compatible with optional CN16 GPS Accessory
· Precision machined 40mm diameter steel Polar shafts supported by multiple tapered roller bearings and ball bearings.

Specifications

Optical Design8" Schmidt-Cassegrain
Focal Length2032mm F/10
Finderscope6x30mm
MountComputerized Equatorial
Optical TubeAluminum
Optical CoatingsStarbright XLT Coating
Eyepiece25mm (81x)
Star Diagonal1.25"
TripodAdjustable, Stainless Steel
Power SupplyCar battery adapter
Optical Specs:Highest Useful Magnificatn488 x
Lowest Useful Magnication29.03 x
Limiting Stellar Magnitude251.34
Field of View : Standard Eyepiece62°
Linear FOV (@1000 yds)32 ft.
Secondary Mirror Obstruction2.7 in (68.58 mm)
by Area406359.36 %
by Diameter6960.67 %
Resolution: Rayleigh3663364.02 arcsec
Dawes Limit.57 arc seconds
GearSteel worm gear and 90mm pitch diameter brass worm wheel
Software Specs: Motor: TypeLow cog DC Servo motors with encoders, both axes
Telescope Control SystemCOMPUTER HAND CONTROL: Double line, 16 character Liquid Crystal Display; 19 fiber optic backlit LED buttons
Slew SpeedsNine slew speeds: 4 °/sec, 2 °/sec, .5 °/sec, 64x, 16x, 8x, 4x, 1x, .5x
Tracking RatesSidereal, Solar and Lunar
Tracking ModesEQ North and EQ South
Alignment Procedures2-Star Align, Quick Align, 1-Star Align, Last Alignment, Solar Align
Software Precision24bit, 0.08 calculation
Database40,000+ objects, 400 user defined programmable objects. Enhanced information on over 200 objects
Electronic Specs: Power Requirements12 VDC 1.5 Amp
GPSOptional CN16 Accessory
Optical tube length17" (431.8mm)
Telescope Weight88 lb (39.92 kg)
