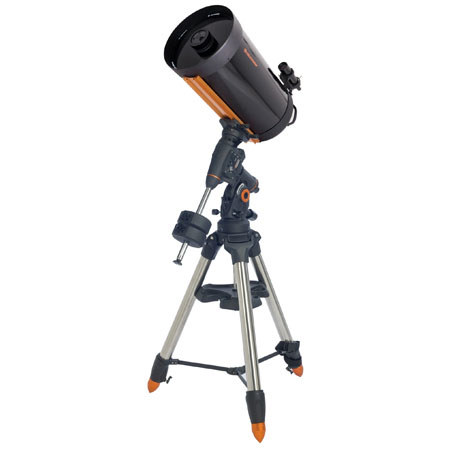

Celestron CGEM DX 1400 FASTAR Computerized Telescope

Celestron
SKU: CNCGEMDX14F MFR: 11005
45% Off

Our Price

$6,299.00
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About Celestron

Celestron's CGEM DX 1400 features our high-end 14" Schmidt Cassegrian OTA with XLT coatings mounted on our brand new CGEM DX mount. The CGEM DX mount is the newest member of our fully computerized Equatorial mount series capable of carrying Celestrons high-end 11" and 14" optical tubes. The CGE PRO style, 2.75" leg tripod holds even our 14" optics securely while dampening vibration, which is ideal for both imaging and visual observing. Capable of holding 50 lbs of payload and slewing at 5 per second, you will be able to instantly point to any of the celestial objects in the database.
Ergonomic Design - CGEM DX was designed to be ergonomically friendly with large Altitude and Azimuth adjustment knobs for quick and easy polar alignment adjustment. The internal RA and DEC motor wiring provides a clean look and an easy and trouble free set up.
Innovation - The CGEM DX series has a new innovative Polar alignment procedure called All-Star. All-Star allows users to choose any bright star, while the software calculates and assists with polar alignment. Another great feature of the CGEM DX sure to please astroimagers, is the Permanent Periodic Error Correction (PEC) which will allow users to train out the worm gears periodic errors, while the mount retains the PEC recordings.
Performance - For objects near the Meridian (imaginary line passing from North to South), the CGEM DX will track well past the Meridian for uninterrupted imaging through the most ideal part of the sky. The CGEM mount has a robust database with over 40,000 objects, 100 user defined programmable objects and enhanced information on over 200 objects.
Power Management - Redesigned electronics deliver constant regulated power to the motors making them capable of driving the telescope even when not perfectly balanced. This allows the CGEM DX to have the payload capacity of that of much larger mounts without sacrificing smooth tracking motion and pointing accuracy across the entire sky.

For two years, Celestron will cover repairs or replacement of this product in cases of defective components or damage from normal wear and tear.

Celestron Features

  • 14" Schmidt-Cassegrain telescope
  • New CGEM DX Computerized Equatorial Mount
  • FASTAR compatible optical tube for f/2 imaging
  • Schmidt-Cassegrain mechanism that moves the primary mirror to adjust focus is supported by two pre-loaded ball bearings, minimizing the "mirror flop" typical of bushing focus mechanisms
  • Celestron's premium StarBright XLT coatings
  • 9x50 finderscope to help accurately find objects
  • Ultra sturdy 2.75" steel tripod with Accessory Tray
  • Star diagonal provides more comfortable viewing position when observing objects that are high in the sky
  • Computerized Mount FeaturesSecure power plug ensures that the mount's power source is not accidentally disconnected
  • 40,000 object database with over 100 user-definable objects and expanded information on over 200 objects
  • Proven NexStar computer control technology
  • New "All-star" Polar alignment uses any bright star for a quick and accurate Polar alignment
  • Software Features include
  • Flash upgradeable hand control software and motor control units for downloading product updates over the Internet
  • Custom database lists of all the most famous deep-sky objects by name and catalog number
  • Permanent Programmable Periodic Error Correction (PEC) - corrects for periodic tracking errors inherent to all worm drives
  • Drive Motors - Low Cog DC Servo motor with integrated optical encoders offer smooth, quiet operation and long life. The motor armatures are skewed to minimize cogging which is required for low speed tracking
  • Internal Cable wiring for trouble-free setup and transportation
  • Designated six-pin RJ-12 modular jack, ST-4 compatible guide port
  • Autoguide port and Auxiliary ports located on the electronic plate for long exposure astrophotography
  • Double-line, 16-character Liquid Crystal Display Hand Control with backlit LED buttons for easy operation of goto features
  • RS-232 communication port on hand to control the telescope via a personal computer
  • Includes NexRemote telescope control software, for advanced control of your telescope via computer
  • GPS compatible with optional SkySync GPS Accessory
  • Precision machined 40 mm diameter steel Polar shafts supported by multiple tapered roller bearings and ball bearings

Celestron Specifications

Optical Design
Schmidt-Cassegrain
Aperture (mm)
356 mm (14 in)
Focal Length
3910 mm (154 in)
Focal Ratio
11
Focal Length of Eyepiece 1 (mm)
40 mm (1.57 in)
Magnification of Eyepiece 1
98 x
Finderscope
9x50
Star Diagonal
1.25"
Mount Type
New CGEM DX Computerized Equatorial
Tripod
Adjustable, Stainless Steel
Power Requirements
Car battery adapter
Highest Useful Magnification
841 x
Lowest Useful Magnification
51 x
Limiting Stellar Magnitude
15.3
Resolution (Rayleigh)
0.39 arc seconds
Resolution (Dawes)
0.33 arc seconds
Light Gathering Power
2586 x
Apparent Field of View
0.71
Secondary Mirror Obstruction
4.5 in (114 mm)
Secondary Mirror Obstruction by Diameter
32%
Secondary Mirror Obstruction by Area
10%
Optical Coatings
Starbright XLT Coatings
Optical Tube Length
24 in (610 mm)
Total Telescope Kit Weight
185 lbs (84 kg)
Weight of Counterweights
2 x 22 lbs
Slew Speeds
Nine slew speeds
Tracking Rates
Sidereal, Solar and Lunar
Tracking Modes
EQ North and EQ South
Alignment Procedures
2-Star Align, Quick Align, 1-Star Align, Last Alignment, Solar System Align
Computer Hand Control
Double line, 16 character Liquid Crystal Display; 19 fiber optic backlit LED buttons
Database
40,000+ objects, 100 user defined programmable objects. Enhanced information on over 200 objects
GPS
Optional SkySync GPS Accessory
Warranty
2-year Telescope Warranty
