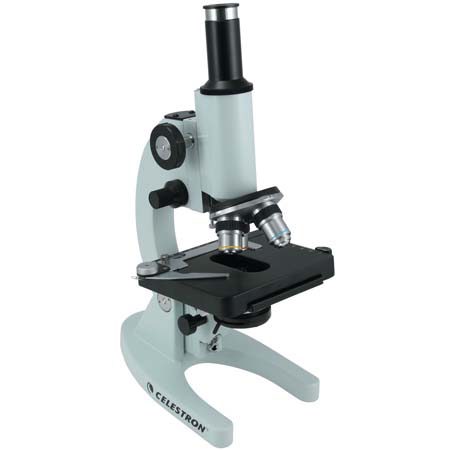

Celestron Advanced Biological Compound High Power Microscope, 500x Power, 12.5x Eyepiece and 40x Objective Lens
Mfr. Part: 44104 SKU: CNMSA500
enlarge image
|
|
 |
|
|
|
Item Includes
Celestron Advanced Compound High Power Microscope - 5 Prepared Sides - Celestron 2 Year Limited Warranty
|
Description
Celestron optical instruments deliver excellent resolution and contrast. Celestron's instruments offer versatility in viewing any microscopy subject that interests you. Celestron offers microscopes suited for a wide variety of uses - hobby, education and research.
This is an intermediate level biological microscope with advanced features. The electric illuminator provides direct control of light. The Abbe condenser and Iris diaphragm are supplied to concentrate and adjust the illumination. It has a mechanical stage that is standard equipment with knobs controlling both axes for easy centering of specimen slides.
All metal construction of the bases, arms, stands, and heads give the microscope lasting durability and rigidity. It has five prepared slides included so you can begin enjoying viewing right "out from the box". The Microscope is backed with a two year limited warranty. |
Features
 |
An intermediate level microscope with advanced features such as an Abbe condenser, iris diaphragm, and electric illuminator at a popular price point |
|
10x & 12.5x eyepieces and 4x, 10x, and 40x objective lenses combine to provide powers of 40x, 50x, 100x, 125x, 400x, and 500x allowing for serious usage |
|
The arm is adjustable from 0° to 60° to provide comfortable viewing |
|
Electric illuminator which provides you with better and direct control of light |
|
Abbe condenser not only allows you to concentrate the light cone but it further allows you to regulate the light from the illuminator |
|
Iris diaphragm provides a means not only to adjust the amount of light passing into the specimen but also allows (by using a lever) optimization of resolution, contrast, and sharpness |
|
Mechanical stage with a large working area of 115mm x 125mm (4.5" x 4.9") comes with stage clips but the real benefit is it makes it easier to center slide specimens with precise movements in two axes with knobs which is critical at 400x power and higher. |
|
Coarse and fine focusing knobs to make focusing easier at powers of 400x and higher |
|
Blue filter which can be useful for enhanced contrast and color correction |
Specifications
| Head | Monocular - Adjustable - 0° to 60° |
| Head Rotatable | No |
| Objective Nosepiece | Triple |
| Objective Sizes & DIN | 4x, 10x, 40x - 185mm |
| Eyepiece(s) | 10x - 12.5x |
| Eyepiece Field of View | 12mm - 10mm |
| Magnification (Power) | 40x, 100x, 400x
50x, 125x, 500x |
| Condenser | Abbe
N.A. 1.25 |
| Diaphragm | Iris |
| Illumination | 50mm (2")
Mirror & Tungsten Elec. |
| Stage | Mechanical
115mmx125mm / 4.5"x4.9" |
| Focus System | Coarse & Fine |
| Other | Blue Filter |
| Weight | 5.9 lb. / (2.68 kg) |
| Warranty | Celestron 2 year limited warranty |
| | |
|
|
|
|
|
|
|
|
|
|
