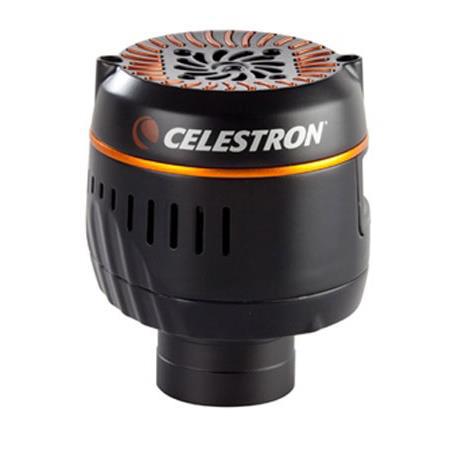

Celestron Nightscape 8300 CCD Camera, 8.3MP, 3326x2504, Kodak KAF-8300 Color Sensor

SKU: CNNS8300 MFR: 95560
48% Off

Our Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

About Celestron Nightscape 8300 CCD

Celestrons ground-breaking Nightscape CCD Camera has a new addition to the lineup: Introducing the Nightscape 8300, the one shot color CCD camera featuring the highly acclaimed Kodak KAF-8300 sensor. The Nightscape 8300 provides 8.3 megapixels of resolution on this ultra-sensitive Kodak CCD. Camera control and image processing are made easy, fast and effective, thanks to the included AstroFX software. Additionally, the Nightscape 8300 is the most affordable feature-rich KAF-8300 CCD camera on the market!
With Nightscape you get:
Sensitivity Nightscapes ultra-sensitive KAF-8300 CCD easily detects subtle deep sky details. Capture the faint wisps of a colorful emission nebula, or image fine detail of a spiral galaxy millions of light years away. Youll be amazed how much faint detail you can detect in your time lapse astroimages.

A Cool Performer The regulated thermoelectric cooling system with adjustable speed fan not only reduce the inherent CCD noise, but the temperature is also precisely regulated to your setting of choice, allowing you to take accurate calibration images. The camera electronics have been carefully engineered to minimize the read noise (only 8e- RMS) and provide the cleanest image data possible.

Form Factor Compact four" diameter design provides minimal obstruction needed for Fastar f/2 imaging. The round symmetrical aluminum cast body resembles the obstruction of the secondary mirror of a Cassegrain telescope ensuring a round star with minimal light diffraction. Additionally the spacing to sensor is the same distance as most DSLR cameras allowing compatibility with most standard DSLR t-adapters.

Full Control Celestrons intuitive AstroFX software takes you step-by-step from taking images to processing the final result. AstroFX gives you full control of your camera from temperature regulation, exposure control as well as computer assisted focusing for easy image acquisition. AstroFX knows just what to do with your images and calibration frames to create a final master image that's been stacked, stretched, sharpened, saturated and ready to share with your friends in a snap.
System requirements:

Processor Pentium or equivalent, or higher

Windows XP, Windows Vista, or Windows 7 (or higher), 32-bit or 64-bit


Disk Space 500MB

Video Display minimum 1024x768, 16-bit color or higher
Included with your Nightscape is Celestron's innovative AstroFX software. AstroFx takes you step-by-step from snapping an image to processing the final result.

Celestron Nightscape 8300 CCD Features

  • Uses the famous KAF-8300 CCD that imagers have grown to love, due to the high resolution, low noise, great sensitivity and affordable cost.
  • A large 22.5mm diagonal CCD chip offers 8.3 megapixels of resolution. That means capturing a larger swatch of the sky with greater detail than similarly priced CCD cameras.
  • Nightscape 8300 is the most affordable feature-rich KAF-8300 camera readily available, retaining all of the advanced features found in more expensive cameras to obtain stunning astrophotos.
  • Regulated thermoelectric cooling and adjustable fan dramatically reduces thermal noise, producing superior images.
  • AstroFX software - takes you step-by-step from taking images to processing the final result.
  • The TEC and 16-bit A/D conversion provide lower noise and greater bit-depth than DSLR cameras, making the Nightscape 8300 an ideal upgrade for DSLR imagers who want to advance to CCD imaging and capture greater detail in every shot.
  • Internal mechanical shutter makes dark frame acquisition easy no need to cap the telescope.
  • Internal 32MB SDRAM full frame memory buffer, ensures accurate and reliable image downloads
  • Specially designed IR-cut optical window with anti-reflectionmulti-coatings provides 94% (or greater) transmission of Hydrogen Alpha wavelength and maximum overall light transmission.
  • Celestrons design combines form and function
  • Removable 2 nosepiece is threaded for 2 filters.
  • ASCOM drivers are included for use with many other popular imaging software programs.

Celestron Nightscape 8300 CCD Specifications

A/D Conversion
16 bit
Back Focus Distance
55 mm w/ 2" barrel; 26 mm w/o barrel
2x2 (monochrome)
Max Cooling
20C below ambient
Dark Signal (at 0 C)
Download Time
12 sec for full-frame image
Dynamic Range
64.4 dB
Exposure Range
.001 sec to 24hrs (2x2 bin); .01sec to 24hrs (1x1 bin)
Full Well Capacity
25,500 e-
Imaging Sensor
Kodak KAF-8300 Color Sensor
2" barrel and t-thread
Operating Environment
40C to -40C (104F to -40F)
Optical Window
High transmission Schott B270 glass
Quantum Efficiency
33%@630 nm; 40%@550 nm; 33%@470 nm
Read Noise (RMS)
8 e-
Internal Mechanical
Software Compatibility
AstroFX, MaximDL, ASCOM Driver
Full, Half, Quarter, selectable
Optical Coatings
IR cutoff and anti-reflection multi-coatings
Weight (lbs)
2 lbs (0.91 kg)
Power Requirements
12V DC 2.5Amp, tip positive
Regulated Thermoelectric w/ Fan
Camera Resolution
8.3MP (3326x2504)
Sensor Size
17.96 mm x 13.52 mm (22.5 mm diagonal)
Pixel Size
5.4 micron square
USB Connection
High-Speed 2.0, 10' cable length

Questions & Answers Powered by TurnTo®

Questions about this item:

Nelson O  Is this camera compatible with the Celestron Advance VX HD 8" telescope? In adittion to the T adapter, what else do I need to make it work.
SHANE E  Yes, it will work with the HD 8" Scope. In fact, it will work well in either the traditional orientation, or with the HD Focal Reducer, or with the addition of a Fastar Adapter as a f/2 Imager. In the traditional configuration, you will need nothing more than an SCT T-Adapter (Celestron #93644 or #93633A). You will also need a decent Laptop with a USB2 Port, and a 12V Battery with a Car Plug (both cables are included with the Camera). (It's interesting that Adorama mentions neither of these...)
