Crimson AV

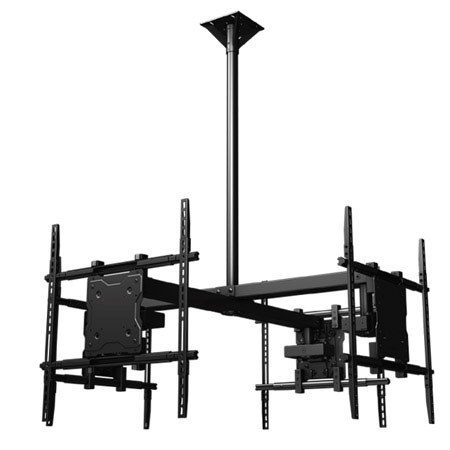

Crimson AV CQUAD65 Ceiling Mounted Quad Display System for 37-65"+ Monitors, Includes Universal Mounting Interface

SKU: CRMCQUAD65 MFR: CQUAD65
Ships in 1-2 business days
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$1,250.00 $49 per week
Free Shipping
Qty:
Add to Wishlist

About the Crimson AV CQUAD65

A complete hardware kit for mounting 4 displays from the ceiling. Includes all hardware required for installation (with exception of ceiling bolts). Comes complete with a 10' pipe drop and a heavy duty ceiling adapter for structural or Unistrut mounting. The Crimson CQUAD65 features through-column cord management and lockable rotation of entire system or individual screens post installation.

Crimson AV CQUAD65 Includes

  • Crimson 10' Pipe Drop
  • Heavy-Duty Ceiling Adapter
  • Ceiling Mount
  • Crimson 10 Years Warranty

Crimson AV CQUAD65 Features

  • Pre-assembled components are easily bolted together
  • 360deg. of post-installation lockable rotation of entire system
  • Lockable rotation of each screen (limited only by size of TV) for flexible configuration angles
  • Universal design
  • VESA compatible
  • Up to 20deg. of pin-locking incremental tilt adjustment
  • Post installation screen leveling without use of tools
  • Pre-sorted hardware pack for easy installation

Crimson AV CQUAD65 Specifications

TV Size Range 37" - 65"+
Max Mounting Pattern 800x672mm
VESA Mounting Patterns 300x200mm, 300x300mm, 400x200mm, 400x300mm, 400x400mm, 600x200mm, 600x400mm, 800x400mm
Tilt +15deg./-5deg.
Roll (Side To Side) 6deg. Tool Less Screen Leveling
Rotation (Yaw) 360deg.
Mounting Interface 1.5" NPT Thread Compatible
Construction High-Grade Cold Rolled Steel
Finish Scratch Resistant Epoxy Powder Coat
Weight Capacity 150lbs / 68.03kg per Screen
