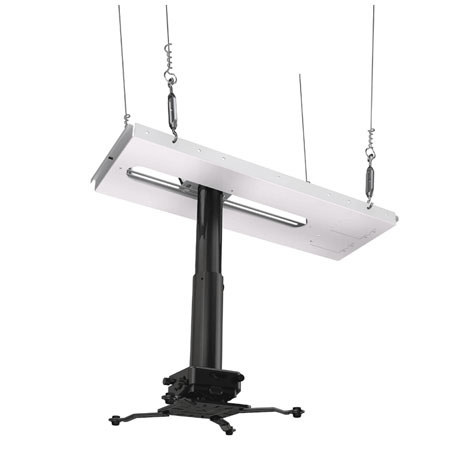

Crimson AV JKS-18A Suspended Ceiling Projector Kit with JR Universal Adapter, Drop Length 12-18", 50lbs Load Capacity

Crimson AV
Free Shipping

See all shipping options

In Stock Online - Usually ships within 1-2 Days learn more

Our Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

About Crimson AV JKS-18A

The Crimson JKS-18A is a complete projector mount kit with suspended ceiling adapter. It has adjustable drop length 12-18". Ideal for projectors weighing up to 50 lb. Built-in roll, pitch and yaw adjustments make alignment fast and easy. Quick release mechanism allows projector to be easily removed for service. It is compatible with all 1.5 NPT threaded pipe.

Crimson AV JKS-18A Features

  • 1" incremental drop length adjustment
  • Mounts above false ceiling tile on standard 2'x2' or 2'x4' grid system
  • Allows for infinite column placement within standard 2'x2' or 2'x4' grid system
  • Includes 22' suspension wire, four turnbuckles and anchors to suspend from wood or concrete structures
  • Fully adjustable roll, pitch and yaw
  • Quick release mechanism allows for easy service of projector
  • Through-column cable routing for an uncluttered look
  • Pre-sorted hardware pack for easy installation

Crimson AV JKS-18A Specifications

Max Mounting Pattern
14.9 x 14.9" / 378.5 x 378.5mm
(up/down) +/- 25deg.
Roll (Side To Side)
+/- 6deg.
Rotation (Yaw)
Drop Length
Height Adjustment
1" increments
1.5" NPT Thread Compatible
Mounting Surface
Wood Joist, Structural Wood Or Structural Concrete (accessory required HE4)
Joist Spacing
Single Joist
Aluminum/High-Grade Cold Rolled Steel
Scratch Resistant Epoxy Powder Coat
Weight Capacity
50lbs / 22.7kg
14.1lbs / 6.4kg
