Crown Audio 1160A 1-Input/1 160W Power Amplifier
Crown Audio

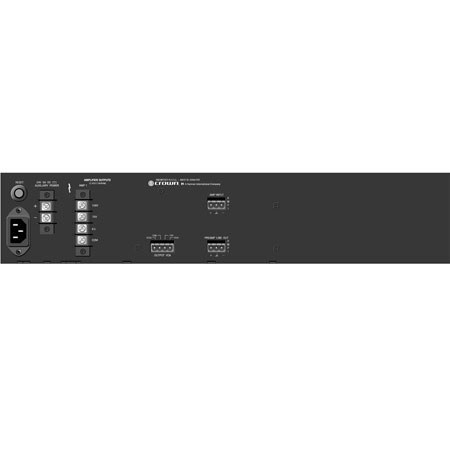

Crown Audio 1160A 1-Input/One 160W Power Amplifier for Single-Zone Systems

SKU: CRW1160A MFR: 1160A
What's Included
What's Included With This Item:
  • Crown Audio 1160A 1-Input/One 160W Power Amplifier
  • Power Cord
  • Rack-Mounting Kit
  • Non-Touch Cover for Output Connectors
  • Crown Audio 3 Years Warranty
Write a Review
Ways to Save
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$499.00
Free Shipping (USA)
Qty:

Add to Wishlist
OverviewFeaturesTech Specs
Its never too late...Click by 8! Same day shipping.

About this item

The 1160A from Crown Audio is a 1-channel, 160W amplifier designed for commercial and industrial audio and is part of Crown's Commercial Audio Series of products. This amplifier is suitable for use in schools, hospitals, offices, prisons, retail spaces and other similar venues for applications such as background music and announcements. It features balanced phoenix-type inputs and touch-proof screw-terminal speaker outputs. It also has a protection system for output current limiting and DC and thermal protection.

What's Included With This Item

  • Crown Audio 1160A 1-Input/One 160W Power Amplifier
  • Power Cord
  • Rack-Mounting Kit
  • Non-Touch Cover for Output Connectors
  • Crown Audio 3 Years Warranty

Key Features

  • Single input and one 160W amplifier for single-zone systems
  • Can be combined with other amplifiers or mixers from Crown's Commercial Audio Series for expandability
  • Ideal for commercial and industrial use
  • Protection system includes output current limiting and DC and thermal protection.

Technical Specs

Output Power 160W into 4 ohms or 70V/100V
Input Sensitivity 800 mV
Input Impedance 100 k ohms
100 k ohms 70Hz - 19kHz (@ 1W from 4 ohm Tap)
20Hz - 20kHz (@ Line Out)
Signal-to-Noise Ratio 85 dB
Total Harmonic Distortion (THD) Less than 0.5%
Input Connections 1 x 3-Pin Phoenix-Type (Balanced)
Output Connectors 1 x 4-Position Terminal Strip
1 x VCA 4-Pin Phoenix-Type Connector
1 x 3-Pin Phoenix-Type Connector (Balanced)
Controls Front Panel On/Off Button
1 x Detented Volume Control Knob
1 x Each of Non-Detented Bass and Treble Controls
Controls (Rear) Reset Button
Indicators Front-Panel Power, Signal and Clip LEDs
Cooling Convection Cooled
Power Consumption 100V 50/60Hz, 120V 60Hz, 220V-240V 50/60Hz
Specialties Protection System for Current Limiting, Overheating Protection and DC Protection
Dimensions (WxHxD) 19 x 3.5 x 12.2" (483 x 89 x 310 mm)
Weight 30.3 lbs (13.7 kg)
