Crown Audio

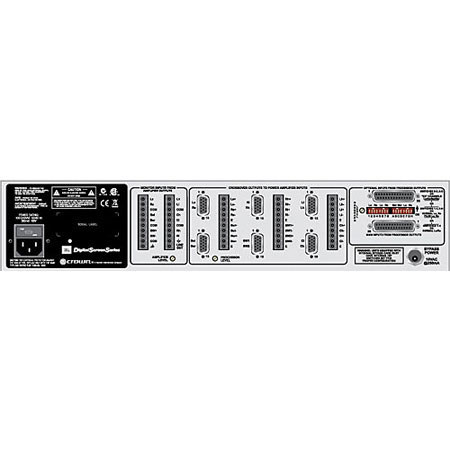

Crown Audio DSi-8M 8-Channel Projection Booth System Monitor

SKU: CRWDSI8M MFR: DSI8M
Please note! This is a Special Order Item and is Non Cancelable and Non Returnable.
We Charge you when you place your order. Approximate arrival at Adorama 5 - 7 Business days from date of order.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$1,310.78
Free Shipping
Qty:

Add to Wishlist

Protect your investment

About the Crown Audio DSi-8M

The Crown Audio DSI8M 8 Channel System Monitor is designed to work with bi-amplified cinema systems using the Crown DSI Series amplifiers. With front panel controls and 8 channel monitoring you can easily review either the processor or the power amplifier's outputs. You can even independently adjust the input levels of the processor and the power amplifier and switch back and forth with no huge level jumps. Further customize your monitoring by calibrating the bargraph display to your theater's reference level.

Crown Audio DSi-8M Includes

  • Crown Audio DSi-8M 8-Ch Projection Booth Monitor
  • Operating Manual
  • Crown Audio 3 Year Warranty

Crown Audio DSi-8M Features

  • Only 2 Rack Units: The DSI8M gives you loads of monitor performance and only takes up two rack units of space.
  • Multiple Channels: With 8 channels of monitoring you can review either processor or amplifier inputs.
  • Independent Adjustments: Adjust input levels for both the processor and power amps independently.
  • Customized Bargraph: Adjust the bargraph display to specifically suit your needs so levels are automatically viewable.
  • Bi-Amp Sound Systems: The DSI8M is designed to specifically work with bi-amplified sound systems to supply monitoring of the high and low frequency outputs from left, center and right channels.

Crown Audio DSi-8M Specifications

Low Frequency Driver JBL 3632 Driver
Mid Frequency Driver JBL 3632 Driver
High Frequency Driver JBL 3632 Driver
Crossover 70 dB
Frequency Range 20 Hz - 20 kHz
Connectors 10-Pin Phoenix, HD-15, 25-Pin D Sub
Input Impedance 10 kohms
Controls and Indicators Channel Select Buttons, Volume Control, Processor/Amplifier Selector Switch and LED, VU Bargraph Meter, Test Jack, Internal Speaker, Power Switch and Power LED
Shielded No
Dimensions (HxWxD) 19 x 3.5 x 9.6" (48.3 x 8.9 x 24.4 cm)
Weight 10.2 lbs (4.6 kg)
