Comprehensive

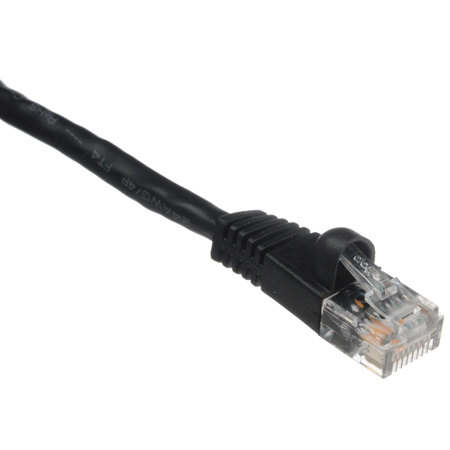

Comprehensive 7' Cat5e 350Mhz Snagless Patch Cable, Black

SKU: CVCAT53507BK MFR: CAT5-350-7BLK
Ships in 1-2 business days
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$4.29 List Price

Our Price

$3.40
Qty:
Add to Wishlist In Stock

About the Comprehensive CAT5-350-7BLK

Comprehensive 7' Cat5e Snagless Patch Black Cable provide 350 Mhz bandwidth for high-speed signal transmission for distributing data, voice and video on today's high speed ethernet and gigabit networks. Comprehensive 7' Cat5e 350Mhz Snagless Patch Cable meet all CAT5E TIA/EIA standards. Each individual pair is attached together to ensure proper spacing between the twists of the wire which greatly reduces loss compared to standard 100Mhz cable. Applications include 1000 BASE-T, 100 BASE-T, 10 BASE-T (IEEE 802.3), 4/16 Mbps Token Ring (IEEE 802.5), 100 VG-AnyLAN 100 Mbps, TP-PMD (ANSI X3T9.5), 55/155 Mbps A and Voice.

Comprehensive 7' Cat5e 350Mhz Snagless Patch Cable have a molded low profile, snagless boot that makes installing these cables quick and easy everytime while providing superior strain relief.

Comprehensive CAT5-350-7BLK Features

  • Gold Plated RJ45 Male to RJ45 Male
  • CAT5E 350 Mhz High Speed
  • 24 awg 4 pair twisted pair construction
  • Meets all 568A and 568B TIA/EIA standards
  • Snagless Boot for easy installation
  • X-traflex jacket
  • RoHS Compliant
  • UL Rated

Comprehensive CAT5-350-7BLK Specifications

Connector Type 1 RJ45 Male
Connector Type 2 RJ45 Male
Performance Grade Good
Bandwidth Supports voice/data/video distribution applications up to 350Mhz
Standards Meets all Cat5E TIA/EIA standards, Verified to EIA/TIA 568B.2
Cable Style Molded snagless boot
Conductors 4 Twisted Pairs 24 AWG Bare copper stranded cable
Conductor DC Resistance 89 Ohm/km (maximum)
Insulation Resistance 100 Ohm/km (minimum)
Connector Material Polycarbonate
Contact Material Copper alloy plated with 50u gold
Outer Diameter 5.3mm
Jacket PVC
RoHS Compliant Yes
Weight 0.2lbs / 0.09kg
