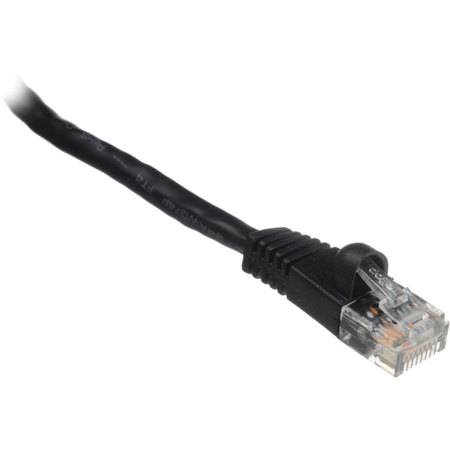

Comprehensive 14' Cat6 550 MHz Snagless Patch Cable, Black

Comprehensive
SKU: CVCAT614BLK MFR: CAT6-14BLK

Our Price

$4.44
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

Special Offers

More Buying Options

About Comprehensive Cat 6 Snagless Cable

The Comprehensive 14' Cat6 550 MHz Snagless Patch Cable (Black) is an Ethernet patch cable, suitable for use in professional network installations. It features a male-to-male design, using standard gold-plated RJ-45 connectors on each end. The cable's 550MHz greatly reduces loss when compared to standard 1000MHz cable. It is suitable for use in Gigabit Ethernet networks.

Comprehensive Cat 6 Snagless Cable Features

  • Gold-plated RJ-45 connectors
  • Cat6 cable meets high-speed 550MHz standard
  • Features 24awg stranded construction
  • Compliant with all Category 6 568B 2.1 Draft 9 TIA/EIA standards
  • Snagless boot design ensures easy installation
  • X-traflex jacket is strong and flexible
  • RoHS compliant
  • UL rated

Comprehensive Cat 6 Snagless Cable Specifications

Cable Type
Cat6 Ethernet
Cable Length
14' / 4.26m
Compatibility
1000 BASE-T; 100 BASE-T; 10 BASE-T (IEEE 802.3), 4/16 Mbps Token Ring (IEEE 802.5); 100 VG-AnyLAN 100 Mbps, TP-PMD (ANSI X3T9.5); 55/155Mbps ATM; Voice
Connector Type 1
RJ45 Male
Connector Type 2
RJ45 Male
Bandwidth
Supports voice/data/video distribution applications up to 550 MHz
Standards
Meets all Cat6 TIA/EIA standards, Verified to EIA/TIA 568B.2
Cable Style
Molded snagless boot
Conductors
4 Twisted Pairs 24 AWG Bare copper stranded cable
Conductor DC Resistance
9.8 Ohm at 100m maximum
Connector Material
Polycarbonate
Contact Material
Copper alloy plated with 50u gold
Outer Diameter
6.2mm / 0.24"
Jacket
PVC
RoHS Compliant
Yes
Weight
0.3lbs / 0.14kg
Mfr #
CAT6-14BLK
SKU
CVCAT614BLK
