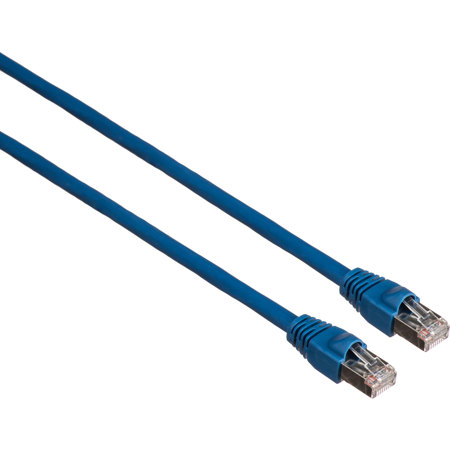

Comprehensive 25' Networking Cable: Picture 1 regular $27.48

About Comprehensive 25' Networking Cable

The Comprehensive 25' CAT6A Shielded Patch Cable (Blue) enables 10-Gigabit data transmission over a 4-conductor 24awg shielded twisted-pair copper cable, allowing connection distances of up to 100 meters. Current Cat6 cabling systems may only support 10-Gigabit Ethernet over limited distances. The CAT6A draft extends the Cat6 electrical specifications from 250 MHz to 500 MHz. It also proposes a new measurement for Power-Sum Alien Crosstalk to 500 MHz. Alien Crosstalk is a coupled signal in a disturbed pair arising from a signal in a neighboring cable. Comprehensive CAT6A cables have an integrated snagless boot and 50u gold plated contacts.

Comprehensive 25' Networking Cable Features

  • Supports IEEE 802.3af and is DTE power compliant
  • Provides NEXT performance beyond 600 MHz
  • Low-profile snagless hood is ideal for high-density switch applications
  • Meets all Alien crosstalk reduction specifications - not affected by wire in adjacent cable
  • 10Gbit/s transmission to 100m
  • Performance Tested - Tested to exceed 500MHz
  • CAT6a Copper Patch Cables feature Molded Connectors with Snagless Guards
  • CAT6a Copper Patch Cables feature Gold-Plated Connector Contacts - Deliver maximum conductivity for high-speed data transmissions
  • Backward compatible with CAT5e and CAT6
  • PoE rated to four times the standard

Comprehensive 25' Networking Cable Specifications

Cable Length
25' / 7.62m
Connector Type 1
RJ45 Male
Connector Type 2
RJ45 Male
Supports voice/data/video distribution applications up to 550 MHz
Meets all Cat6A TIA/EIA standards, Verified to EIA/TIA 568B.2
Cable Style
Shielded CAT6A Molded snagless boot
4 Twisted Pairs 24 AWG Bare copper stranded cable
Connector: Polycarbonate
Contact: Copper alloy plated with 50u gold
Outer Diameter
6.8mm / 0.26"
RoHS Compliant
0.25 lbs / 0.11 kg
Mfr #
