Comprehensive

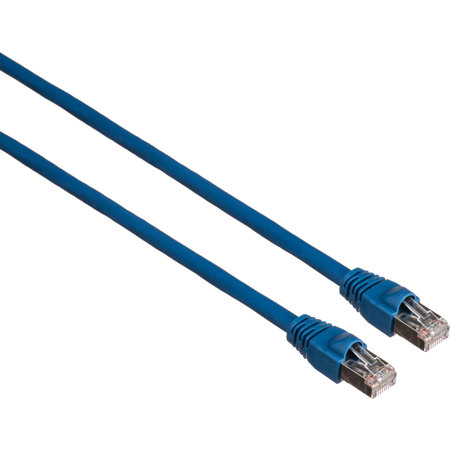

Comprehensive 3' CAT6A Shielded Patch Cable, Blue

SKU: CVCAT6A3BLU MFR: CAT6A-3BLU
Ships in 1-2 business days
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$11.59
Qty:

Add to Wishlist

About this item

The Comprehensive 3' CAT6A Shielded Patch Cable (Blue) enables 10-Gigabit data transmission over a 4-conductor 24awg shielded twisted-pair copper cable, allowing connection distances of up to 100 meters. Current Cat6 cabling systems may only support 10-Gigabit Ethernet over limited distances. The CAT6A draft extends the Cat6 electrical specifications from 250 MHz to 500 MHz. It also proposes a new measurement for Power-Sum Alien Crosstalk to 500 MHz. Alien Crosstalk is a coupled signal in a disturbed pair arising from a signal in a neighboring cable. Comprehensive CAT6A cables have an integrated snagless boot and 50u gold plated contacts.

Key Features

  • Supports IEEE 802.3af and is DTE power compliant
  • Provides NEXT performance beyond 600 MHz
  • Low-profile snagless hood is ideal for high-density switch applications
  • Meets all Alien crosstalk reduction specifications - not affected by wire in adjacent cable
  • 10Gbit/s transmission to 100m
  • Performance Tested - Tested to exceed 500MHz
  • CAT6a Copper Patch Cables feature Molded Connectors with Snagless Guards
  • CAT6a Copper Patch Cables feature Gold-Plated Connector Contacts - Deliver maximum conductivity for high-speed data transmissions
  • Backward compatible with CAT5e and CAT6
  • PoE rated to four times the standard

Technical Specs

Cable Length 3' / 0.91m
Connector Type 1 RJ45 Male
Connector Type 2 RJ45 Male
Bandwidth Supports voice/data/video distribution applications up to 550 MHz
Standards Meets all Cat6A TIA/EIA standards, Verified to EIA/TIA 568B.2
Cable Style Shielded CAT6A Molded snagless boot
Conductors 4 Twisted Pairs 24 AWG Bare copper stranded cable
Material Connector: Polycarbonate
Contact: Copper alloy plated with 50u gold
Outer Diameter 6.8mm / 0.26"
Jacket PVC
RoHS Compliant Yes
Weight 0.09 lbs / 0.04 kg
