Comprehensive 100' CAT6 Crossover Cable, Gray

Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500

Our Price

Free Expedited Shipping On Orders Over $49
Free Shipping
Add to Wishlist

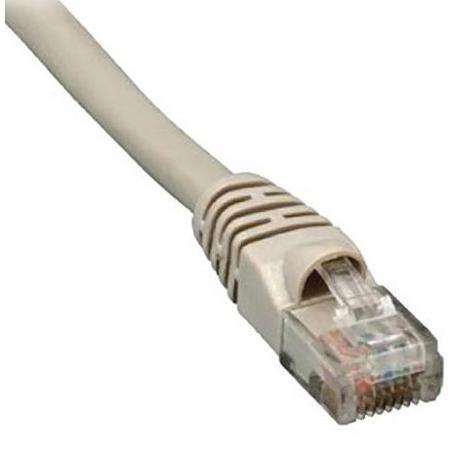

Comprehensive 100' CAT6 Crossover Cable: Picture 1 regular

About the Comprehensive 100' CAT6 Crossover Cable

The Comprehensive 100' CAT6 Crossover Cable (Gray) helps you connect your computers over the network and get 550 MHz of bandwidth. By reversing transmit and receive pairs on one end of the cable, you can connect computers directly to each other without a hub. This cable is also ideal for adding a hub without a crossover port.

Comprehensive 100' CAT6 Crossover Cable Features

  • 50-micron gold-plated RJ-45 male to male connector
  • 24 AWG stranded copper conductor
  • PVC jacket
  • Molded, snag-free boot prevents unwanted cable snags while providing easy insertion and extraction from network ports
  • Crossed-pin configuration allows you to connect 2 computers (peer-to-peer) without the need for a hub or switch
  • Suitable for connecting network switches and hubs without an uplink port to their switches and hubs
  • RoHS compliant

Comprehensive 100' CAT6 Crossover Cable Specifications

Cable Length 100' / 30.48m
Connector Type 1 RJ45 Male
Connector Type 2 RJ45 Male
Bandwidth Supports voice, data & video distribution applications up to 550 MHz
Standards Meets all Cat6 TIA / EIA standards, verified to EIA / TIA 568B.2
Style Cable: Shielded CAT6A molded snagless boot
Conductors 4 twisted pairs 24 AWG bare copper stranded cable
Conductor DC Resistance 9.8 Ohm at 100 m (maximum)
Material Connector: Polycarbonate
Contact: Copper alloy-plated with 50u gold
Jacket PVC
RoHS Compliant Yes
Outer Diameter 6.2mm / 0.24"
Weight 1 lbs / 0.45 kg
