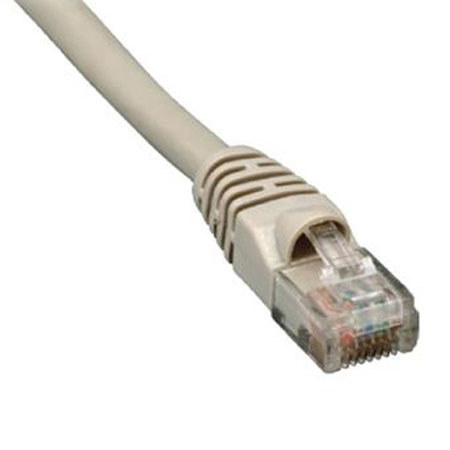

Comprehensive 3' CAT6 Crossover Cable, Gray

Comprehensive
SKU: CVCAT6X3GRY MFR: CAT6-X-3GRY

About Comprehensive 3' CAT6 Crossover Cable

The Comprehensive 3' CAT6 Crossover Cable (Gray) helps you connect your computers over the network and get 550 MHz of bandwidth. By reversing transmit and receive pairs on one end of the cable, you can connect computers directly to each other without a hub. This cable is also ideal for adding a hub without a crossover port.

Comprehensive 3' CAT6 Crossover Cable Features

  • 50-micron gold-plated RJ-45 male to male connector
  • 24 AWG stranded copper conductor
  • PVC jacket
  • Molded, snag-free boot prevents unwanted cable snags while providing easy insertion and extraction from network ports
  • Crossed-pin configuration allows you to connect 2 computers (peer-to-peer) without the need for a hub or switch
  • Suitable for connecting network switches and hubs without an uplink port to their switches and hubs
  • RoHS compliant

Comprehensive 3' CAT6 Crossover Cable Specifications

Cable Length
3' / 0.91m
Connector Type 1
RJ45 Male
Connector Type 2
RJ45 Male
Bandwidth
Supports voice, data & video distribution applications up to 550 MHz
Standards
Meets all Cat6 TIA / EIA standards, verified to EIA / TIA 568B.2
Cable Style
Shielded CAT6A molded snagless boot
Conductors
4 twisted pairs 24 AWG bare copper stranded cable
Conductor DC Resistance
9.8 Ohm at 100 m (maximum)
Material
Connector: Polycarbonate
Contact: Copper alloy-plated with 50u gold
Jacket
PVC
RoHS Compliant
Yes
Outer Diameter
6.2mm / 0.24"
Weight
0.09 lbs / 0.04 kg
