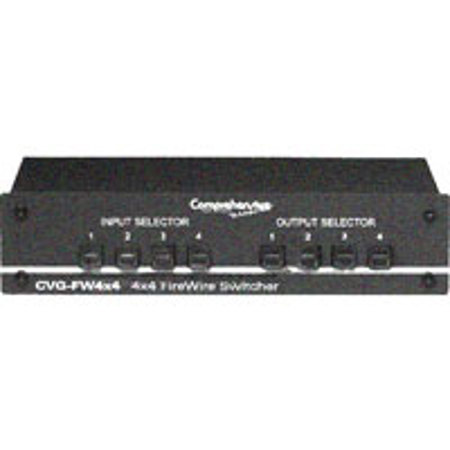

Comprehensive Passive 6 Pin Firewire 4x4 Switcher.

• The Comprehensive CVG-FW4x4 is a high quality passive firewire switcher designed for today's multimedia applications. The CVG-FW4x4 has four 6-pin inputs and four 6-pin outputs. The CVG-FW4x4 will accept up to four 6-pin firewire inputs and will output to any one of the four outputs. The CVG-FW4x4 features mechanical break-before-make switching, and is compatible with devices up to 400 MB/s. The CVG-FW4x4 does not allow more than one input or one output to be used at a time and it cannot distribute to multiple outputs simultaneously.
• The CVG-FW4x4 comes in a rugged metal enclosure, and does not require any power source, and is therefore perfectly suitable for fieldwork. Its un-powered design can be an advantage where various regulatory compliances would otherwise be required. The unit is covered under a 3 year warranty. Optional rack mount K-81 is available. As with all equipment, the signal is only as good as the weakest link. For maximum erformance, always use Comprehensive brand high resolution cables.
