Comprehensive 1x2 Y/C Video, Stereo Audio Line Driver / Distribution Amplifier

SKU: CVCVGSVA2LD MFR: CVG-SVA2LD

Our Price

$219.95
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

List Price: $239.20

Availability: Temporarily On Backorder Temporarily On Backorder - Although this item is temporarily on Backorder, you can order it now and it will ship as soon as it arrives. Your card will only be charged once item is shipped. Notify me when in stock

Free Shipping

See all shipping options

Ways To Save

Product Highlights

  • Drives signals up to 500 ft
  • Cable Equalization
  • Audio Gain
  • AC / DC Operation
  • All Metal Enclosure
  • UL / CSA Approval
  • 1.1 lbs, 5-1/4 (W) x 3-1/2 (D) x 1-1/2 (H), Dark Grey
  • S-video on 4-pin female connector, Impedance 75 Ohms

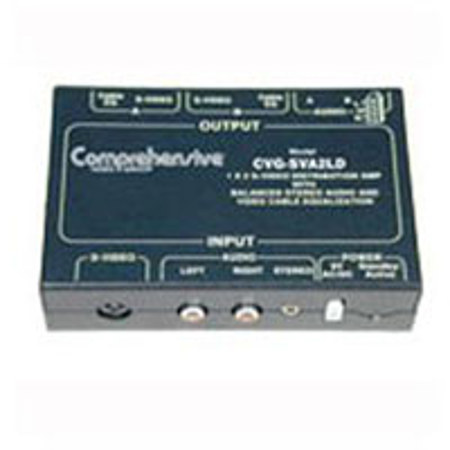

Comprehensive 1x2 Y/C Video: Picture 1 regular $219.95

About Comprehensive 1x2 Y/C Video

The Comprehensive CVG-SVA2LD is a high performance S-video and stereo audio linedriver capable of sending an S-video signal with stereo audio up to 500 feet when used with premium cable. Used to distribute S-video and stereo audio over long distances, the CVG-SVA2LD is the perfect choice when sending S-video and audio signals to monitors that may be different distances from the source. The CVG-SVA2LD provides separate cable equalization of +/-5dB for each of the 2 video outputs, and compensates for signal level and high frequency losses that occur over long cable runs. Stereo audio may be input on either two RCA jacks orone stereo 3.5mm mini jack, which then outputs two sets (L&R) of balanced or unbalanced stereo audio. The CVG-SVA2LD runs on a standard 9 volt AC/DC source, so it is therefore perfectly suitable for fieldwork. UL and CSA approved.

Comprehensive 1x2 Y/C Video Features

  • Drives signals up to 500 ft.
  • Cable Equalization.
  • Audio Gain.
  • AC / DC Operation
  • All Metal Enclosure.
  • UL / CSA Approval.
  • Weight (lbs): 1.1 and Dimensions: 5-1/4" (W) x 3-1/2" (D) x 1-1/2" (H), Color: Dark Grey
  • VIDEO INPUT: S-video on 4-pin female connector, Impedance 75 Ohms.
  • AUDIO INPUT: 2 RCA female jacks and 1 stereo 3.5mm mini jack connector, Impedance 10k Ohms DC coupled unbalanced.
  • VIDEO OUTPUT: 2 S-video on 4-pin female connectors.
  • AUDIO OUTPUT: 2 sets (L&R) of Balanced / Unbalanced Stereo Audio on 5 position screw terminal output. Impedance 50 Ohms. Max level: 600 Ohms: +12dBv Balanced/ +6dBv Unbalanced. Hi-Z: +14dBv Balanced/ +8dBv Unbalanced.
  • VIDEO BANDWIDTH: 100 MHz.@ 3dB. AUDIO BANDWIDTH: 20
