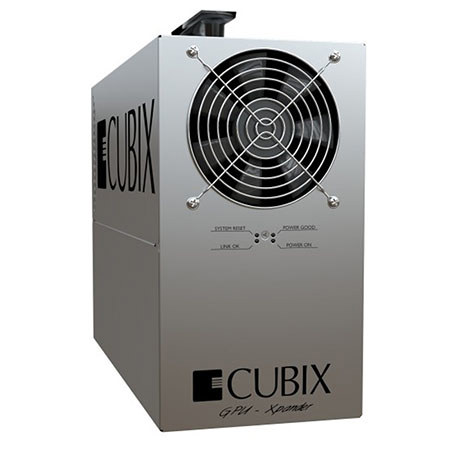

Cubix GPU-Xpander Desktop Pro2 with 16 PCIe Channels and 2 Double-wide Slots

Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price


Add to Wishlist In Stock

About the Cubix Pro2

Cubix GPU-Xpander XPDT-X16-2-OSV Pro 2 is an economical way to enhance the Input/Output (I/O) power of your computer. GPU-Xpander Pro 2 is a hardware-only solution that expands the I/O capability of your computer by adding slots, power and cooling. Each GPU-Xpander Pro 2 adds two PCI Express (PCIe) slots to your computer. Add high-powered graphics or GPUs for mathematical high-performance computing (HPC) to your existing computer with GPU-Xpander Pro 2. Each PCIe slot in your computer can support a GPU-Xpander Pro 2.

Add two NVIDIA Quadro FX 1800 / 3800 / 4800 / 5800, Quadro 4000 / 5000 / 6000 graphics controllers, two NVIDIA Tesla C1060 / C2050 / C2070 computing processors or two NVIDIA GeForce GTX 465 / 470 / 480 Fermi controllers to any computer that has an available PCI Express (PCIe) x8 or x16 expansion slot by installing the host adapter in the computer's x8 or x16 slot, connecting it to the GPU-Xpander Pro 2, installing graphics drivers and voila! You have just added two powerful graphics controllers or CUDA-capable HPC controllers without buying a new computer.

Cubix Pro2 Features

  • Install blazing fast graphics or calculations within minutes
  • Two PCIe x16 expansion slots in each GPU-Xpander Pro 2
  • Two powerful graphics controllers like NVIDIA Quadro FX 1800 / 3800 / 4800 / 5800 or Quadro 4000 / 5000 / 6000
  • Two powerful HPC processors like NVIDIA Tesla C1060 / C2050 / C2070 or GeForce GTX 465 / 470 / 480 Fermi
  • An independent power supply to meet any expansion requirement
  • Simple, quick installation with minimal impact per operator desktop; just install a host adapter and a graphics driver

Cubix Pro2 Specifications

Expansion Slots 2 x PCI Express x16, x8 electrical
Supports 2 x double-wide graphics controllers
Graphics or IO Controllers NVIDIA Quadro FX 1800 / 3700 / 3800 / 4800 / 5800
Quadro 4000 / 5000 / 6000
Tesla C1060 / C2050 / C2070
GeForce GTX 465 / 470 /480 Fermi
GeForce 9800GT / 8800GTX
USB 2.0 multi-port
Gbps Ethernet
Host Adapter PCIe x8 or x16 bus interface
PCIe x8 connector
Host Connection 2.000meter (6.560feet), external PCI Express x8 68-pin cable standard
3.000meter (9.840feet), external PCI Express x8 68-pin cable optional
1.000meter (3.370feet), external PCI Express x8 68-pin cable optional
250 mating cycles maximum connector duty cycle
Front Panel 4 LEDs for system reset, link ok (cable present), power supply good and power supply on
Rear Panel Power on/off and power input
Power Single-phase, 50/60Hz, auto-ranging, 100-240VAC, 5.5-3.0A
Dimensions (H x W x D) 11.000" x 6.125" x 15.000" (27.940cm x 15.557cm x 38.100cm )
Weight 17.600 lbs (7.982kg)
